Toyota Sienna Service Manual: 2Gr-fe engine mechanical

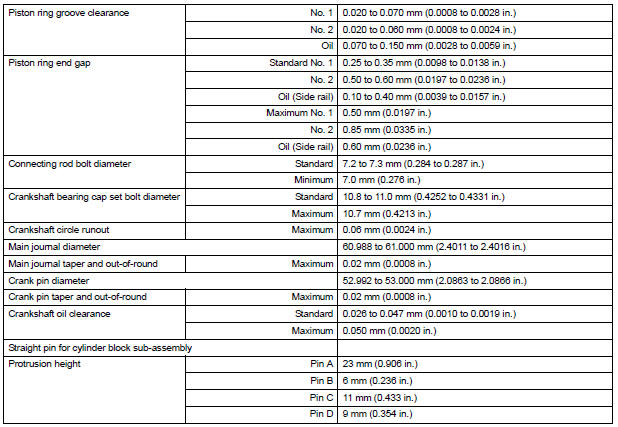

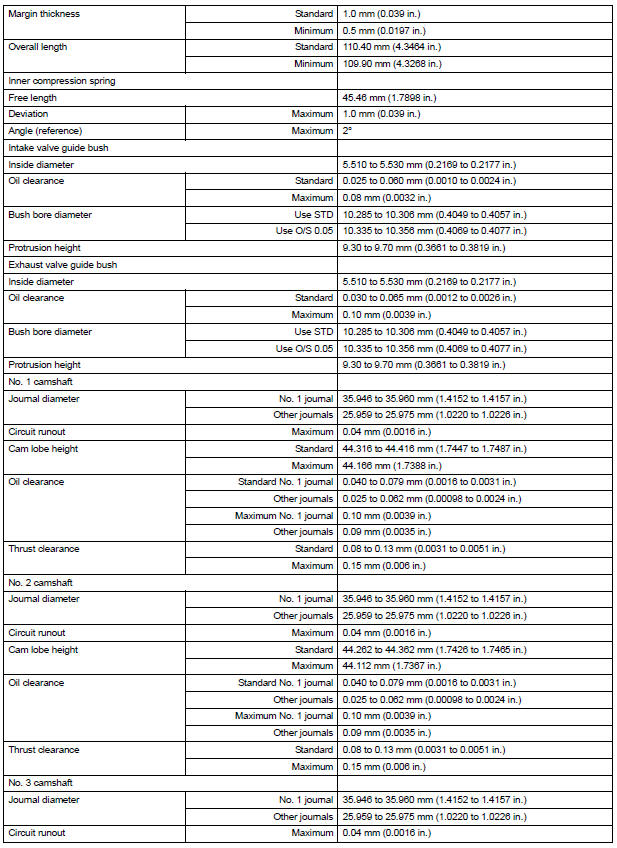

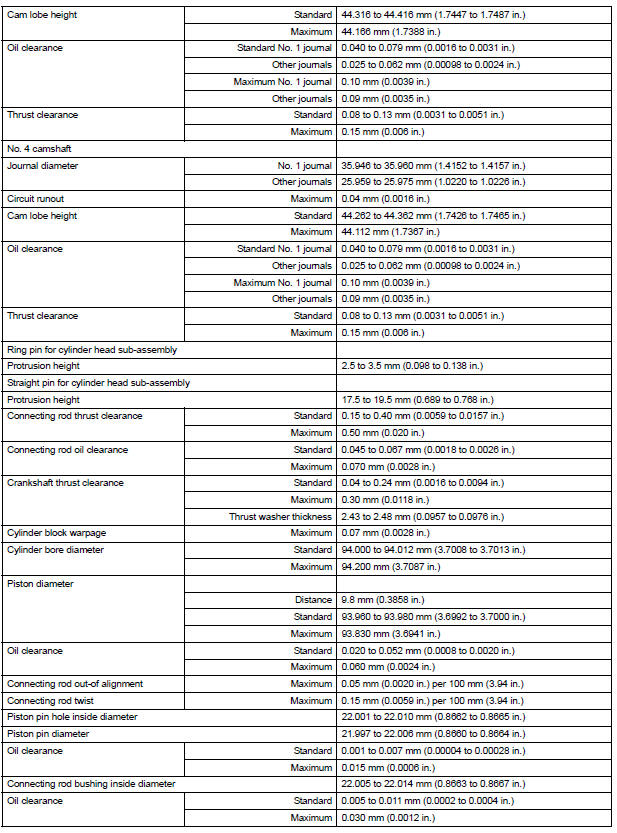

SERVICE DATA

SERVICE DATA

SERVICE DATA

SERVICE DATA

SERVICE DATA

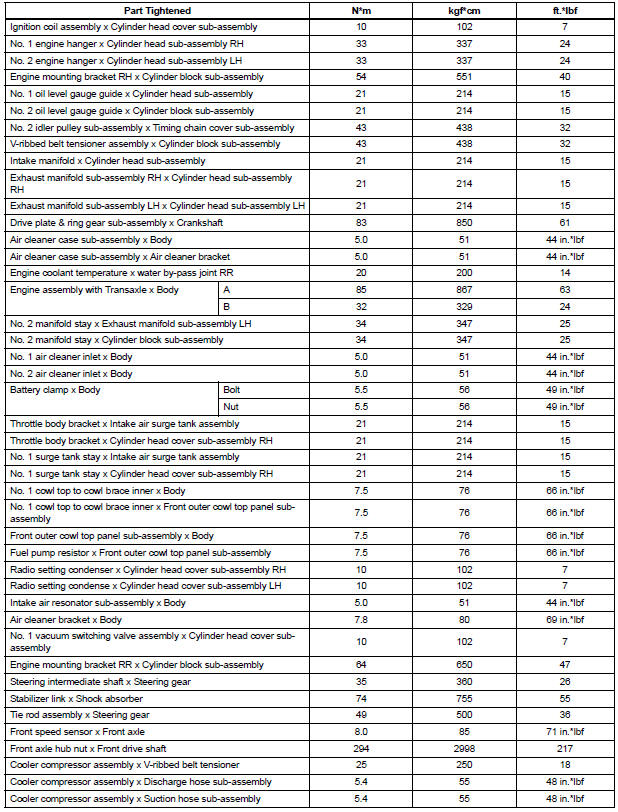

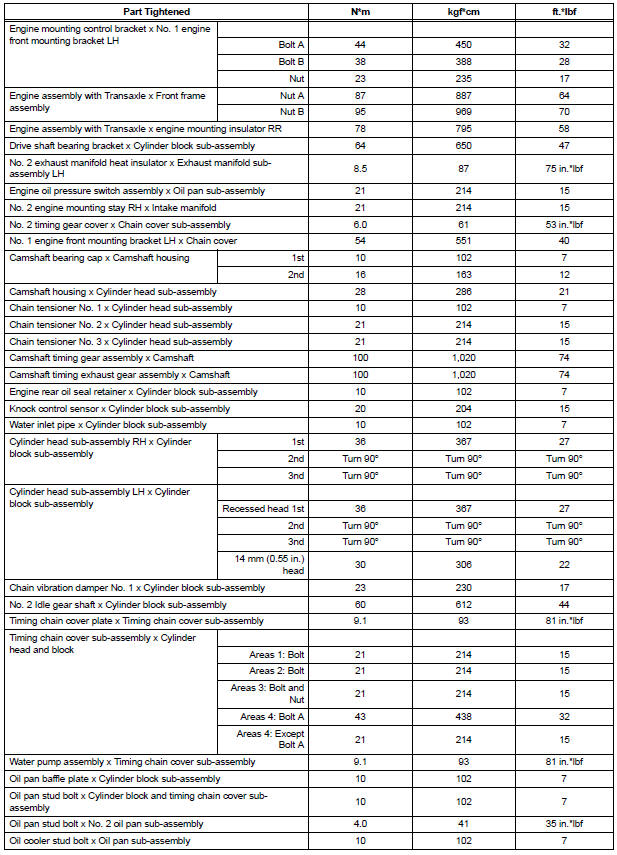

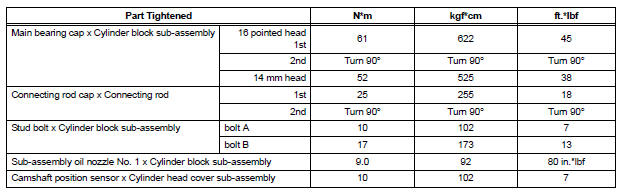

TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

2GR-FE FUEL

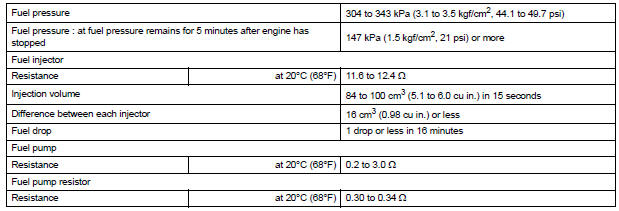

SERVICE DATA

SERVICE DATA

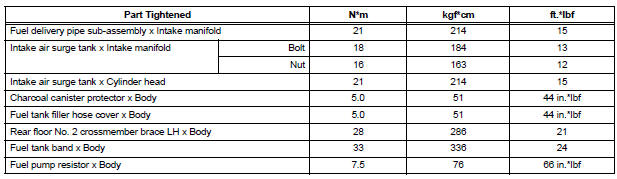

TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

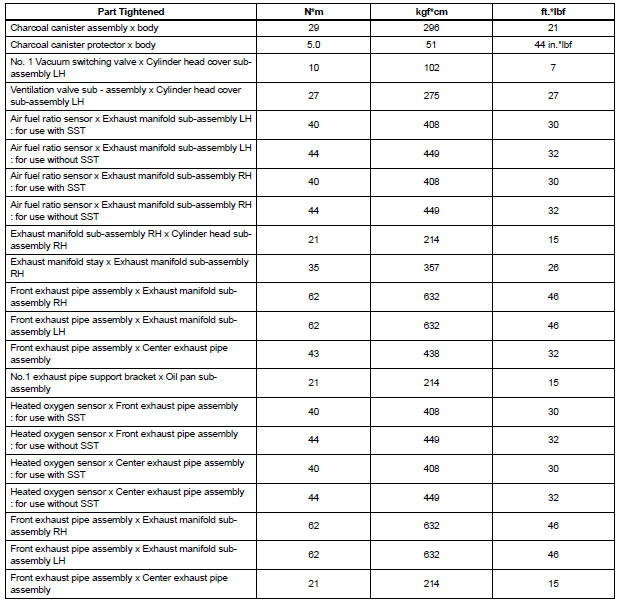

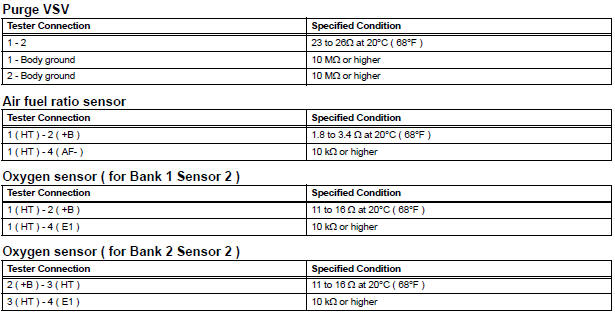

2GR-FE EMISSION CONTROL

SERVICE DATA

SERVICE DATA

TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

2GR-FE INTAKE

SERVICE DATA

SERVICE DATA

TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

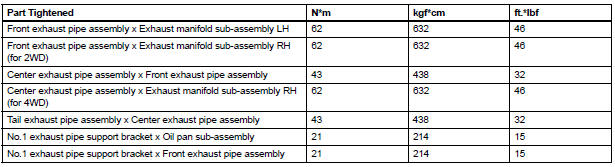

2GR-FE EXHAUST

SERVICE DATA

SERVICE DATA

TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

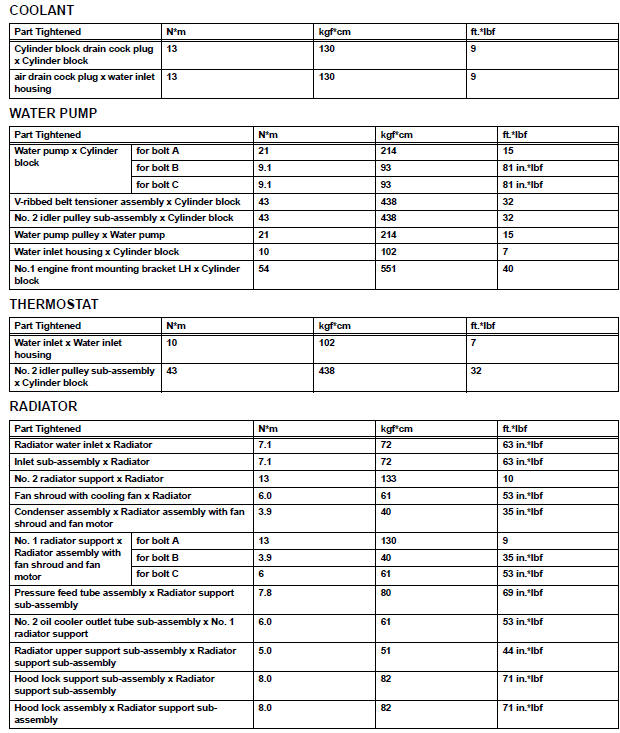

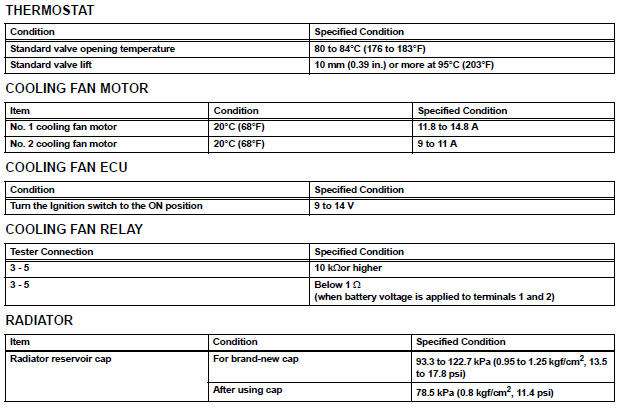

2GR-FE COOLING

SERVICE DATA

SERVICE DATA

TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

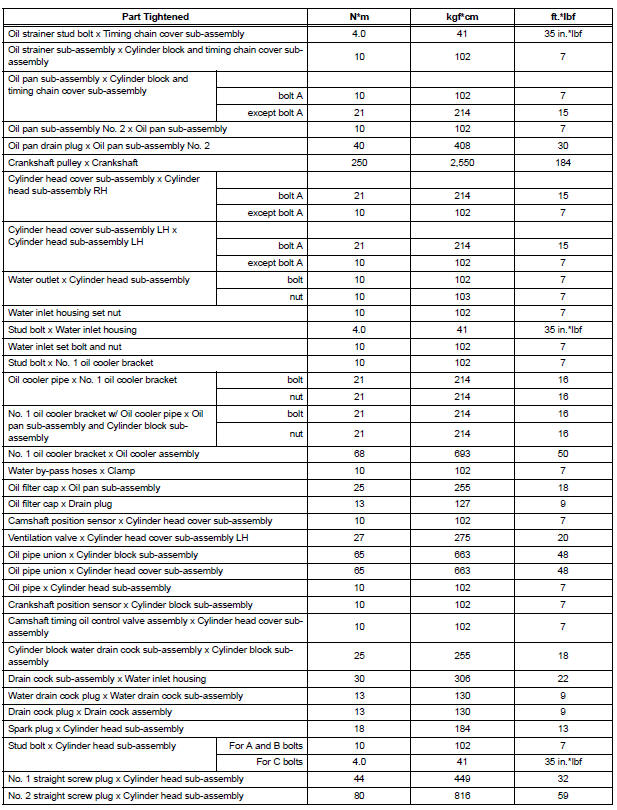

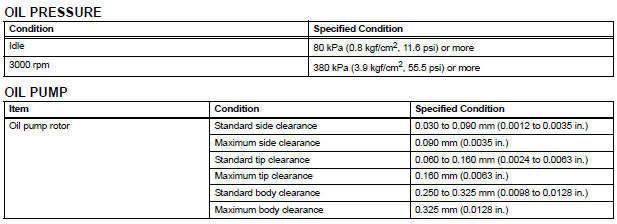

2GR-FE LUBRICATION

SERVICE DATA

SERVICE DATA

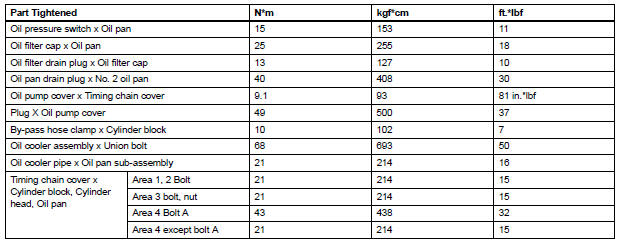

TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

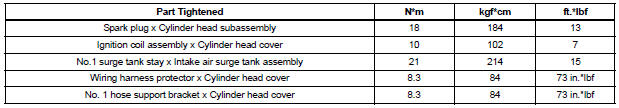

2GR-FE IGNITION

SERVICE DATA

SERVICE DATA

TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

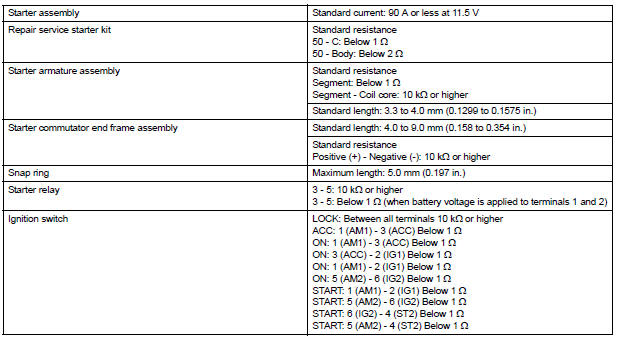

2GR-FE STARTING

SERVICE DATA

SERVICE DATA

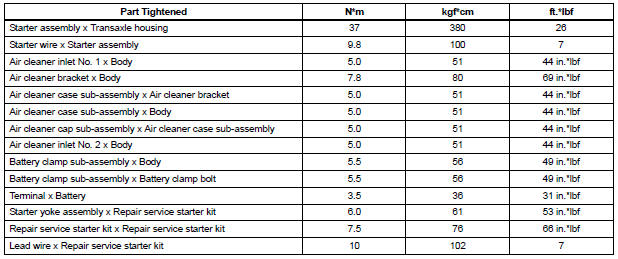

TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

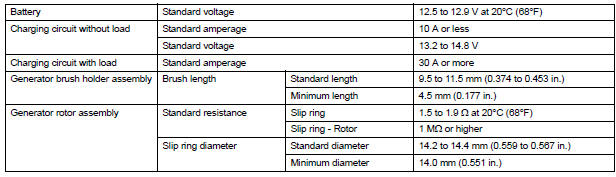

2GR-FE CHARGING

SERVICE DATA

SERVICE DATA

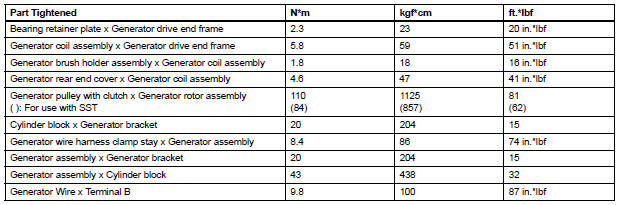

TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

Standard bolt
HOW TO DETERMINE BOLT STRENGTH SPECIFIED TORQUE FOR STANDARD BOLTS HOW TO DETERMINE NUT STRENGTH HINT: *: Nut with 1 or more marks on one side surface of the nut. Use a nut with t ...

U151e automatic transaxle
SERVICE DATA TORQUE SPECIFICATIONS ...
