Toyota Sienna Service Manual: Accelerator pedal rod

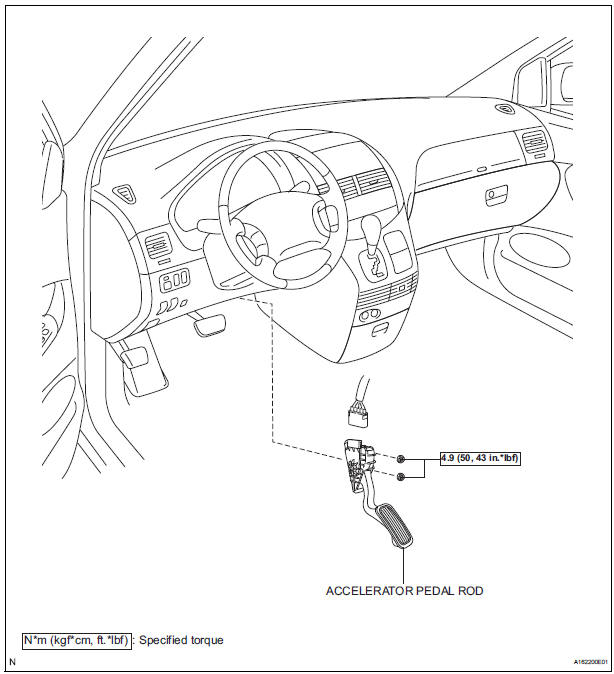

COMPONENTS

COMPONENTS

Installation
1. INSTALL ECM  Install the ECM with the 2 nuts. Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)  Connect the 5 ECM connectors. 2. INSTALL ECM (with 10 speakers system)   ...

On-vehicle inspection
1. CHECK ACCELERATOR PEDAL ROD  Check the voltage.  Connect the intelligent tester to the DLC3.  Turn the ignition switch to the ON position. Turn the intelligent test ...
