Toyota Sienna 2010-2020 Owners Manual: Air outlets

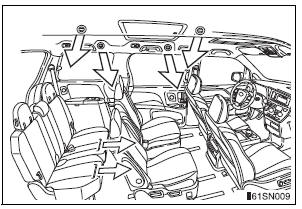

Location of air outlets

Toyota Sienna. Location of air outlets


The air outlets and air volume changes according to the selected air flow mode.

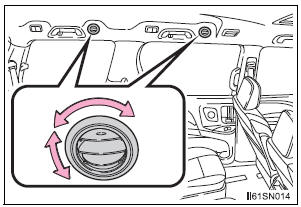

Adjusting the position of the air outlets

Direct air flow to the front or rear, up or down.

Toyota Sienna. Adjusting the position of the air outlets


Temperature display

The temperature display on the multi-information display can be changed.

When the front air conditioning system is in simultaneous mode

The lower side indicator on the “SYNC” button is on. The rear air conditioning system controls will continue to function.

NOTICE

To prevent battery discharge

Do not leave the air conditioning system on longer than necessary when the engine is stopped.
