Toyota Sienna Service Manual: Automatic transaxle unit

COMPONENTS

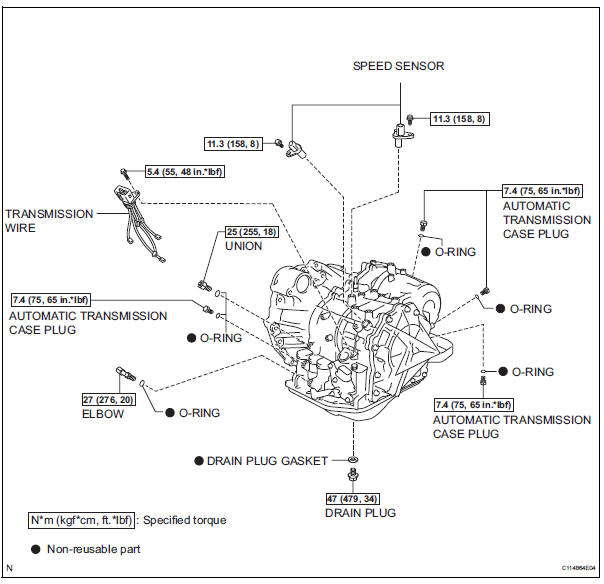

Automatic transaxle unit

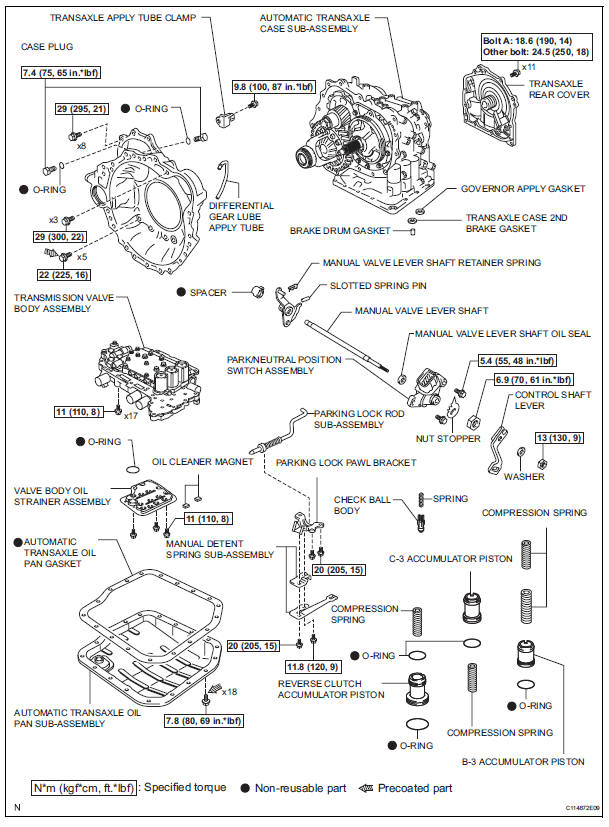

Automatic transaxle unit

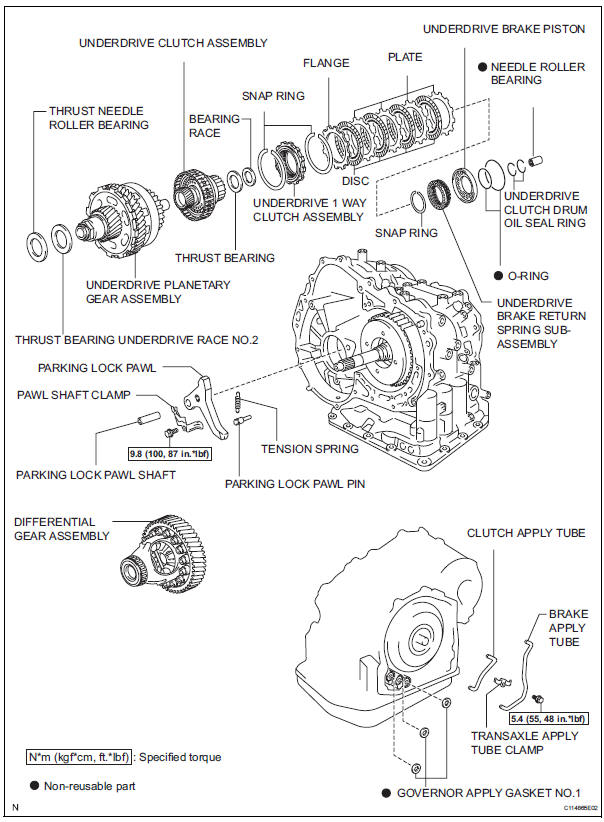

Automatic transaxle unit

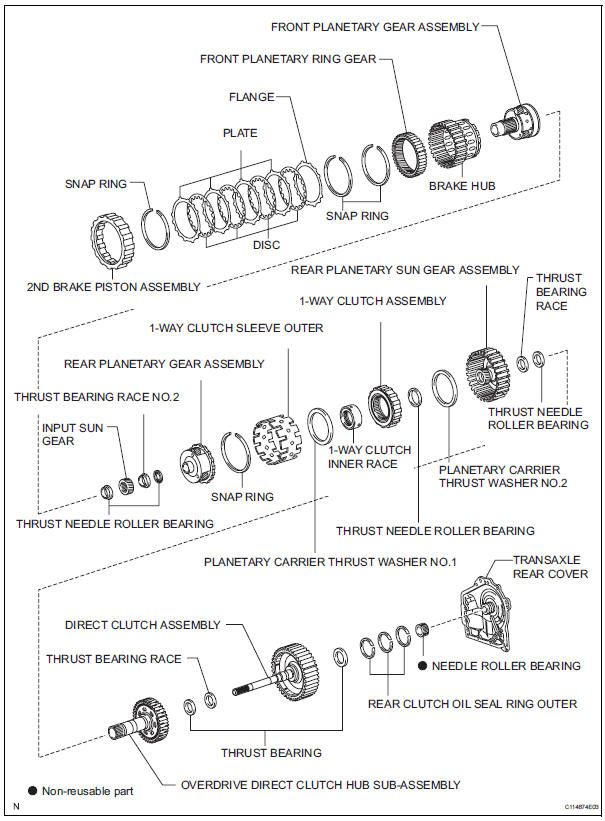

Automatic transaxle unit

Automatic transaxle unit

Torque converter clutch and drive plate
Inspection 1. Inspect torque converter clutch assembly (a) Inspect the one-way clutch. (1) Set SST into the inner race of the one-way clutch. SST 09350-32014 (09351-32010) (2) Install SS ...

Disassembly
1. Remove park/neutral position switch assembly (A) remove the nut, washer and control shaft lever. (B) using a screwdriver, unstake the nut stopper, and remove the lock nut and nut stopper ...
