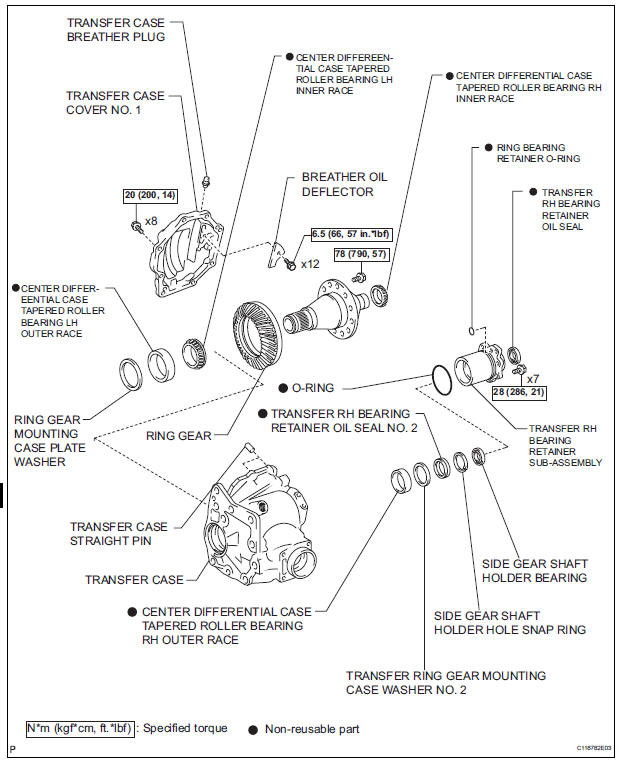

COMPONENTS

Bearing retainer oil seal

Transfer oil
ON-VEHICLE INSPECTION 1. INSPECT TRANSFER OIL (a) Remove the No. 1 plug and gasket. (b) Check the oil level is within 0 - 5 mm (0 - 0.20 in.) below the lowest end of the hole for No. 1 plug. ...

Removal
1. DRAIN AUTOMATIC TRANSAXLE FLUID (See page AX-131) 2. REMOVE NO. 1 TRANSFER CASE PLUG (See page TF-8) 3. REMOVE TRANSFER DRAIN PLUG (a) Remove the transfer drain plug, gasket and bleed the dra ...
