Toyota Sienna 2010-2018 Owners Manual: Bottle holders

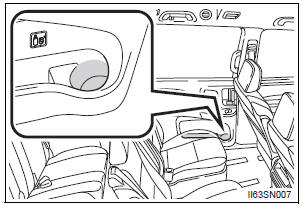

- Front
- Rear
- When storing a bottle, close the cap.
- The bottle may not be stored depending on its size or shape.
| WARNING
Do not place anything other than a bottle in the bottle holders.
Other items may be thrown out of the holders in the event of an accident or sudden braking and cause injury. |
| NOTICE Rear: Make sure items in the sliding door bottle holder will not interfere with the motion of the door before operating the door. Items that protrude from the bottle holder may prevent door opening or damage the vehicle. |
Cup holders
Front
Press in and release the front cup
holder.
Console box type A
(if equipped)
Console box type B
(if equipped)
Pull the lid down.
Console box type C
(if e ...
Door pockets
Front
Rear
NOTICE
Rear: Make sure magazines are not bent
or protruding from the sliding door pockets.
Do not insert anything too big so that
the shape of the s ...
