Toyota Sienna Service Manual: Brake booster

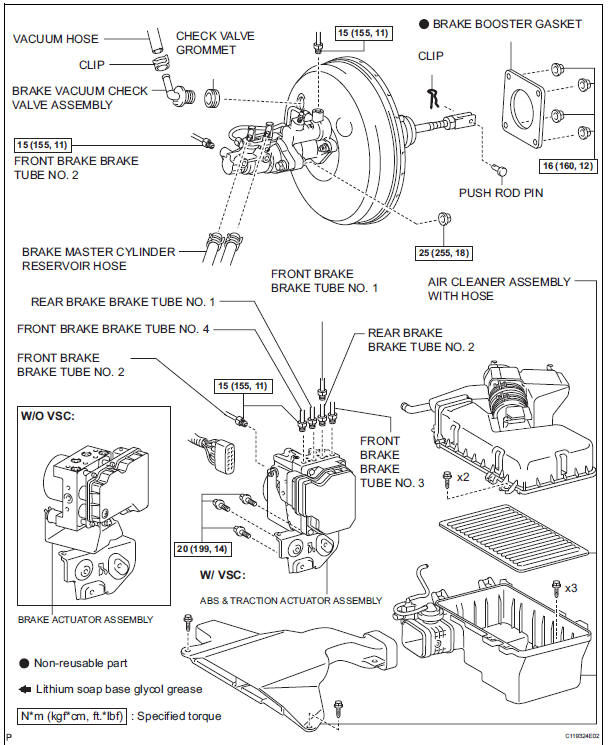

COMPONENTS

Brake booster

Installation
1. INSTALL BRAKE MASTER CYLINDER (a) Install the brake master cylinder with the 2 nuts. Torque: 13 N*m (130 kgf*cm, 9 ft.*lbf) (b) Slide the clip and connect the brake master cylinder reserv ...

On-vehicle inspection
1. INSPECT BRAKE BOOSTER (a) Air tightness check. (1) Start the engine and stop it after 1 or 2 minutes. Depress the brake pedal several times slowly. HINT: If the pedal goes down farthes ...
