Toyota Sienna Service Manual: Brake master cylinder

Toyota Sienna Service Manual / Brake control / Brake master cylinder

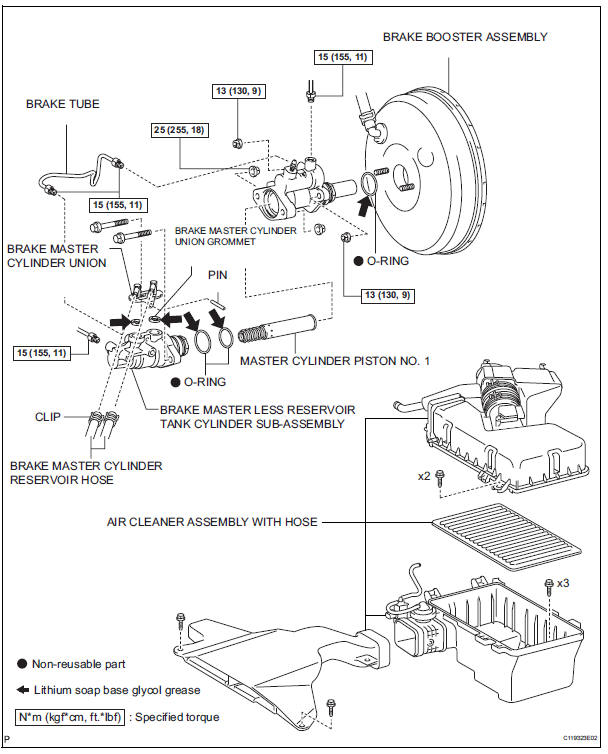

COMPONENTS

Brake master cylinder

Installation
1. INSTALL BRAKE PEDAL SUPPORT ASSEMBLY (a) Install the brake pedal support sub-assembly with the 4 nuts. Torque: 16 N*m (160 kgf*cm, 12 ft.*lbf) (b) Install the clip and clevis pin to the b ...

Removal
NOTICE: Do not adjust the brake booster push rod. Do not change the combination of the diameter converting unit and brake. 1. DRAIN BRAKE FLUID NOTICE: Wash the brake fluid off immediatel ...
