Toyota Sienna 2010-2020 Owners Manual: Cargo hooks

Toyota Sienna 2010-2020 Owners Manual / Interior features / Using the storage features / Luggage compartment features / Cargo hooks

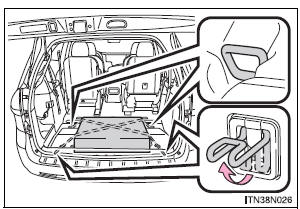

Raise the hook to use.

Toyota Sienna. Cargo hooks

The cargo hooks are provided for securing loose items.

WARNING To avoid injury, always return the cargo hooks to their positions when they are not in use.

Cargo net hooks

Raise the hook to use. Pattern 1 Pattern 2 NOTICE To prevent damage to the cargo net hooks, avoid hanging things other than a cargo net on them. Storage box ...
