Toyota Sienna 2010-2018 Owners Manual: Changing engine switch modes

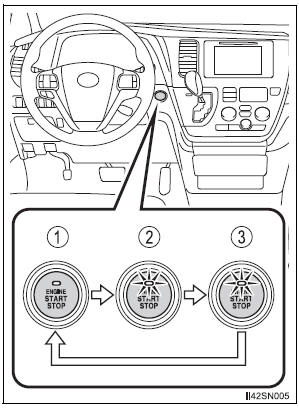

Modes can be changed by pressing the engine switch with the brake pedal released. (The mode changes each time the switch is pressed.)
- Off*
Emergency flashers can be used. - ACCESSORY mode
Some electrical components such as the audio system can be used.The engine switch indicator turns amber.
- IGNITION ON mode
All electrical components can be used.The engine switch indicator turns amber.
*: If the shift lever is in a position other than P when turning off the engine, the engine switch will be turned to ACCESSORY mode, not to off.
Stopping the engine
Stop the vehicle.
Shift the shift lever to P.
Set the parking brake.
Press the engine switch.
Release the brake pedal and check that the indicator on the engine
switch is off.
...
When stopping the engine with the shift lever in a position other
than P
If the engine is stopped with the shift lever in a position other than P,
the engine switch will not be turned off but instead be turned to
ACCESSORY mode. Perform the following procedure to turn th ...
