Toyota Sienna 2010-2018 Owners Manual: Child restraint systems with a top tether strap (second seat)

Toyota Sienna 2010-2018 Owners Manual / For safety and security / For safe use / Installing child restraints / Child restraint systems with a top tether strap (second seat)

Toyota Sienna. Child restraint systems with a top tether strap


  1. Secure the child restraint system using the seat belt or LATCH anchors, and adjust the head restraint to the uppermost position.

    *: Ottoman seat only

Toyota Sienna. Child restraint systems with a top tether strap

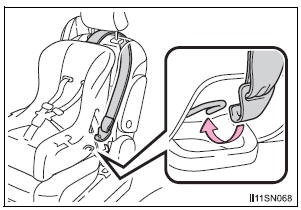

  1. Latch the hook onto the anchor bracket and tighten the top tether strap.

    Make sure the top tether strap is securely latched.

Toyota Sienna. Child restraint systems with a top tether strap


  1. Adjust the head restraint to the downmost lock position.
Removing a child restraint installed with a seat belt
Push the buckle release button and fully retract the seat belt. ...

Child restraint systems with a top tether strap (third seat)
Center seat Secure the child restraint system using the seat belt or LATCH anchors. Adjust the head restraint to the uppermost position. Latch the hook onto the anchor brac ...
