Toyota Sienna Service Manual: Components

Components

Components

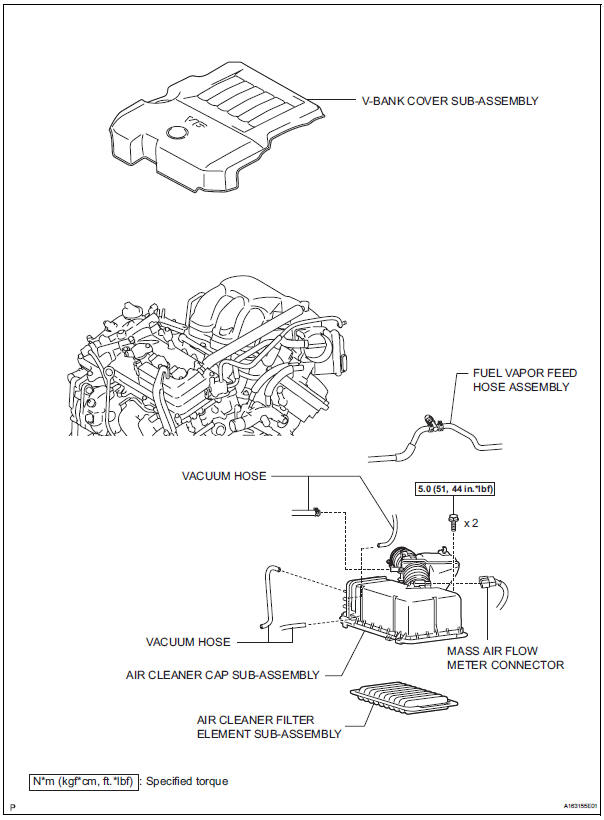

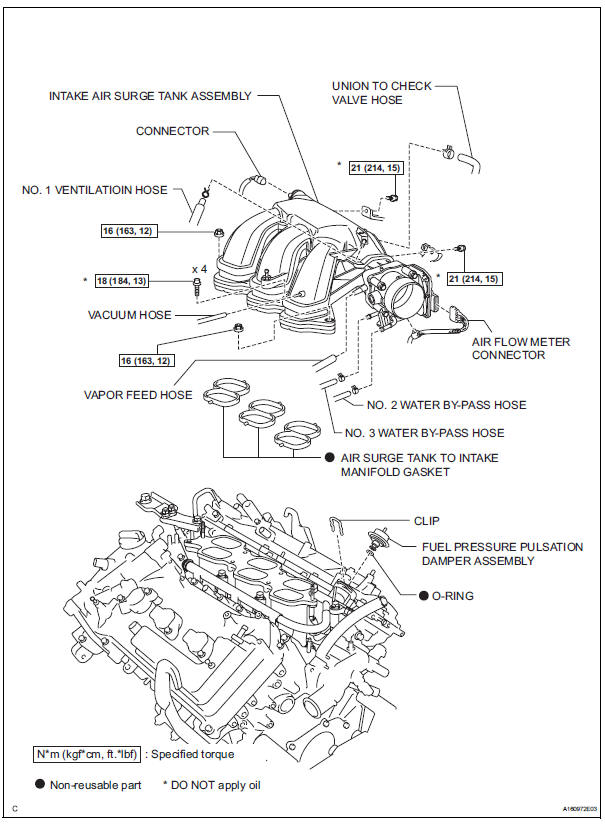

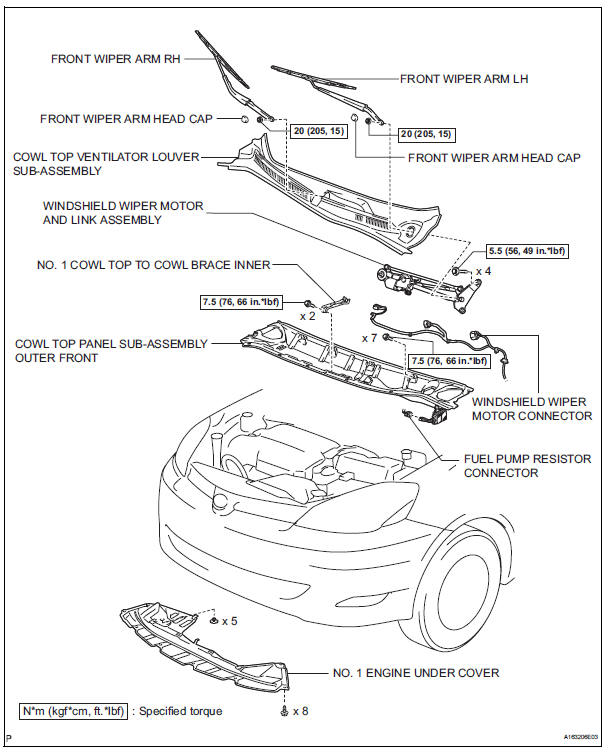

Components

Fuel pressure pulsation damper
...

Removal
1. DISCHARGE FUEL SYSTEM PRESSURE HINT: See page FU-1. 2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL 3. REMOVE NO. 1 ENGINE UNDER COVER 4. DRAIN ENGINE COOLANT (See page CO-6) 5. REMOVE FR ...
