Toyota Sienna Service Manual: Components

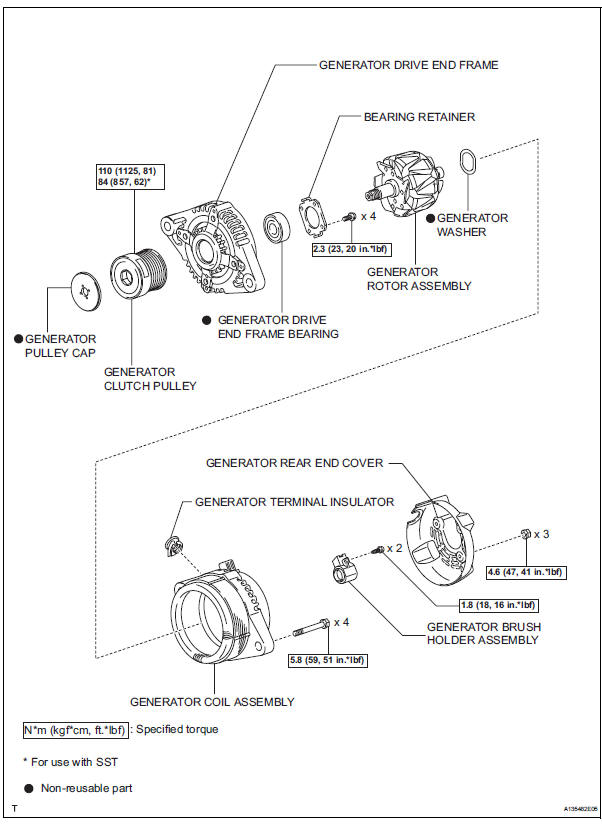

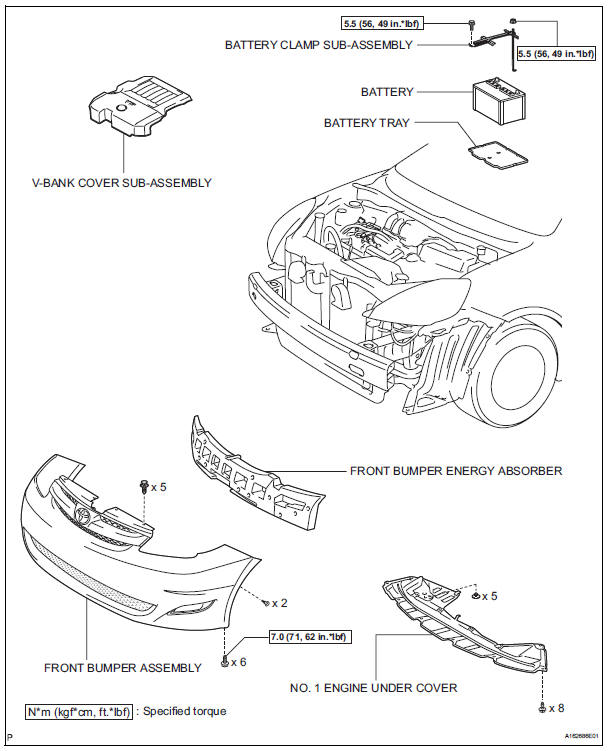

Generator

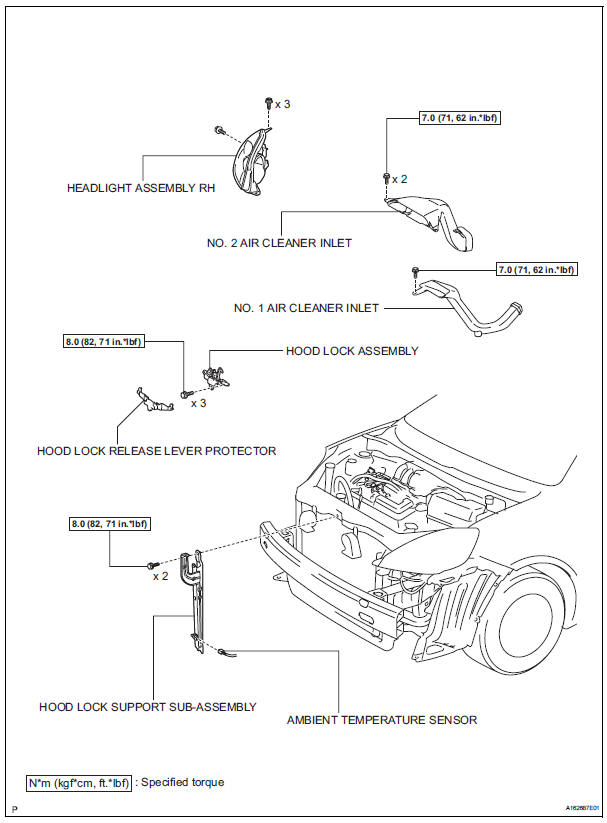

Generator

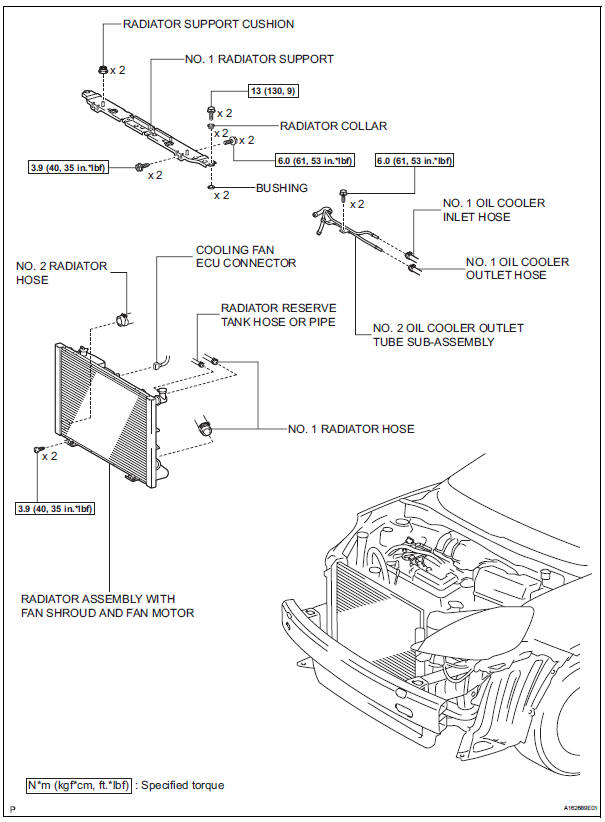

Generator

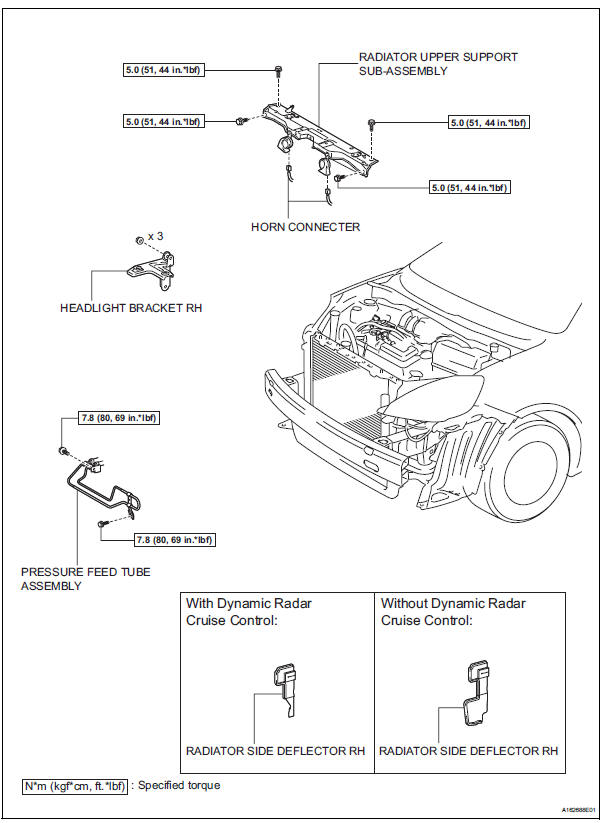

Generator

Generator

Generator

Generator
...

Removal
1. Remove v-bank cover sub-assembly (see page em-28) 2. Remove front wheel rh 3. Remove no. 1 Engine under cover (see page em-26) 4. Remove front fender apron seal rh (see page em-26) 5. Drain ...
