Toyota Sienna Service Manual: Crankshaft position sensor

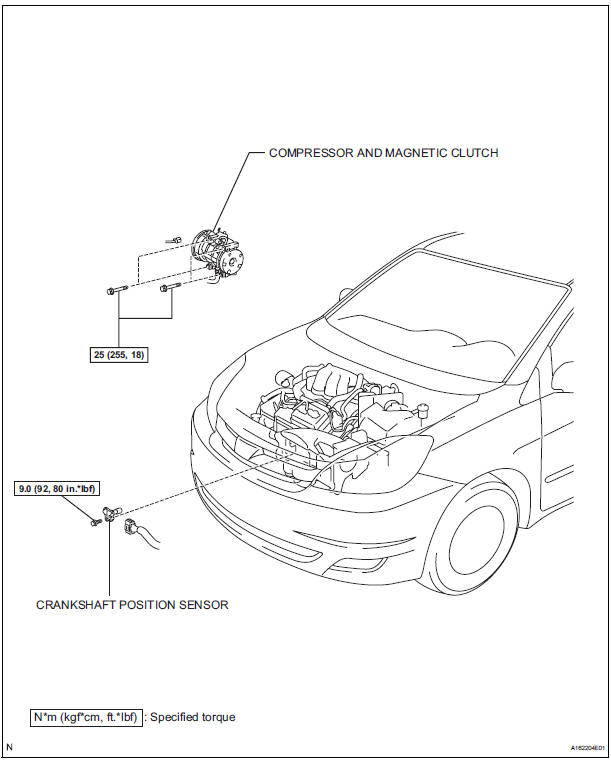

COMPONENTS

COMPONENTS

Installation
1. INSTALL VVT SENSOR (for Bank 2 Exhaust Side)  Install the VVT sensor with the bolt. Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)  Connect the VVT sensor connector. 2. INSTALL VVT ...

Removal
1. REMOVE COMPRESSOR AND MAGNETIC CLUTCH 2. REMOVE CRANKSHAFT POSITION SENSOR  Disconnect the crankshaft position sensor connector.  Remove the bolt, and then remove the cranksh ...
