Toyota Sienna Service Manual: Diagnostic trouble code chart

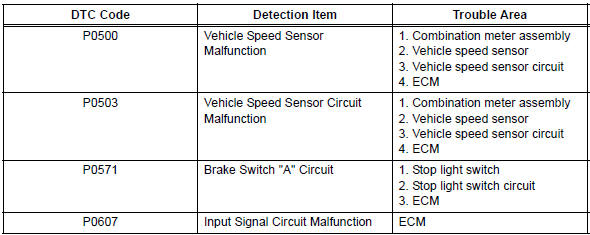

If a trouble code is indicated during the DTC check, check the circuit listed for that code in the table below, and proceed to the applicable page.
CRUISE CONTROL SYSTEM
- Vehicle Speed Sensor Malfunction
- Brake Switch "A" Circuit
- Input Signal Circuit Malfunction
- Cruise Control Switch Circuit
- Cruise Main Indicator Light Circuit
- TC and CG Terminal Circuit
Data list / active test
1. READ DATA LIST
HINT:
Using the intelligent tester to read the Data List allows
the values or states of switches, sensors, actuators and
other items to be read without removing any parts. This
...
Vehicle Speed Sensor Malfunction
DTC P0500 Vehicle Speed Sensor Malfunction
DTC P0503 Vehicle Speed Sensor Circuit Malfunction
DESCRIPTION
The cruise control system uses the same vehicle speed signal that is sent to
the ECM for ...
