Toyota Sienna Service Manual: Display Panel does not Open, Tilt or Tilts Improperly

Toyota Sienna Service Manual / Navigation / Navigation system / Diagnostic trouble code chart / Display Panel does not Open, Tilt or Tilts Improperly

INSPECTION PROCEDURE

1 CHECK RADIO AND NAVIGATION ASSEMBLY

CHECK RADIO AND NAVIGATION ASSEMBLY

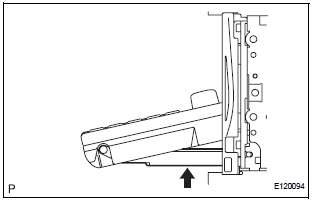

  1. Check for foreign matter or obstructions caught in the moving parts of the panel.

OK: No obstruction or foreign matter found.

2 CHECK OPERATION

  1. Check if the navigation and audio systems function properly.

OK: Navigation and audio systems function properly.

PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE

Touch Panel Switch does not Function
INSPECTION PROCEDURE 1 CHECK TOUCH PANEL Check for foreign matter on the display. OK: The display is clean 2 CHECK TOUCH SWITCH (DISPLAY CHECK MODE) Enter the "Display Check&quo ...

Screen Flicker or Color Distortion
INSPECTION PROCEDURE 1 CHECK DISPLAY SETTING Enter the display adjustment screen by pressing the "DISPLAY" switch.  Reset display settings (contrast, brightness) and check ...
