INSPECTION

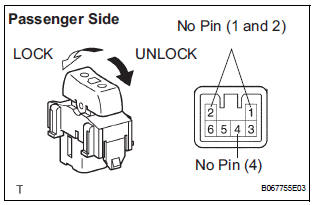

1. INSPECT DOOR CONTROL SWITCH ASSEMBLY

INSPECT DOOR CONTROL SWITCH ASSEMBLY

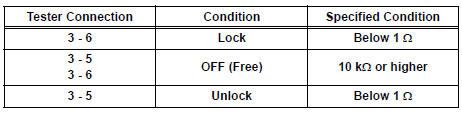

  1.  Measure the resistance according to the value(s) in the table below.

Standard resistance

Standard resistance

HINT: If the result is not as specified, replace the switch.

Door control transmitter
INSPECTION 1. INSPECT DOOR CONTROL TRANSMITTER  Inspect operation of the transmitter.  Remove the battery (lithium battery) from the transmitter.  Install a new or norm ...

Unlock warning switch
INSPECTION 1. INSPECT UNLOCK WARNING SWITCH ASSEMBLY  Remove the unlock warning switch assembly .  Measure the resistance according to the value(s) in the table below. Standa ...
