Toyota Sienna 2010-2021 Owners Manual: Engine compartment

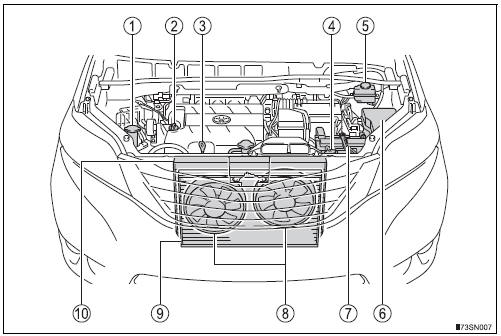

Toyota Sienna. Engine compartment


  1. Washer fluid tank
  2. Engine oil filler cap
  3. Engine oil level dipstick
  4. Engine coolant reservoir
  5. Brake fluid reservoir
  6. Fuse box
  7. Battery
  8. Electric cooling fans
  9. Condenser
  10. Radiator
