Toyota Sienna 2010-2018 Owners Manual: Folding and extending the mirrors

Toyota Sienna. Folding and extending the mirrors

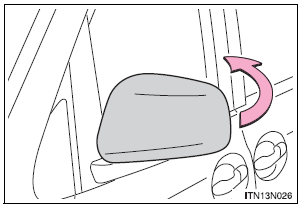

Push the mirror back in the direction of the vehicle’s rear.

Toyota Sienna. Folding and extending the mirrors

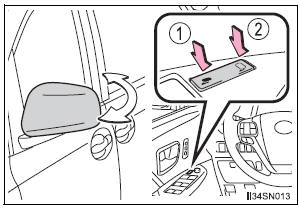

Press the switch.

  1. Folding
  2. Extending
Adjustment procedure
To select a mirror to adjust, turn the switch. Left Right To adjust the mirror, move the switch. Up Right Down Left ...

Linked mirror function when reversing (if equipped)
When the mirror select switch is in the L or R position, the outside rear view mirrors will automatically angle downwards when the vehicle is reversing in order to give a better view of the ground. ...
