Toyota Sienna Service Manual: Front bumper

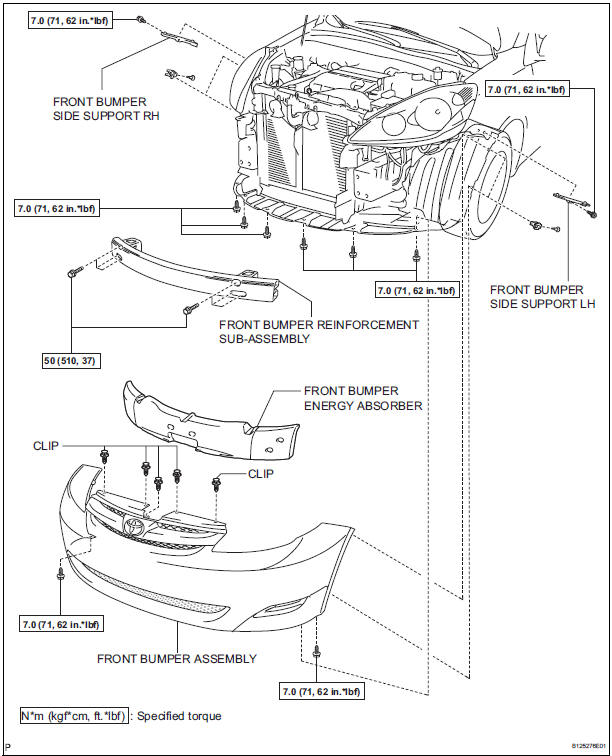

COMPONENTS

COMPONENTS

COMPONENTS

Exterior
...

Removal
1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL 2. REMOVE FRONT BUMPER ASSEMBLY Remove the 4 screws and separate the fender liner from the front bumper assembly. Remove the 8 ...

Other materials:

How to proceed with troubleshooting
HINT: The intelligent tester can be used in steps 2, 3, 4, 6 and 9. 1 VEHICLE BROUGHT TO WORKSHOP 2 CONNECT INTELLIGENT TESTER TO DLC3 HINT: If the display indicates a communication fault in the tester, inspect the DLC3. 3 CHECK DTC AND FREEZE FRAME DATA (a) Check for DTC(s) and freeze f ...

Data list / active test
1. DATA LIST HINT: Using the DATA LIST displayed on the intelligent tester, you can read the value of the switch, sensor, actuator, etc. without parts removal. Reading the DATA LIST as the first step of troubleshooting is one way to shorten the labor time.  Connect the intelligent tes ...

Disassembly
1. REMOVE FRONT DIFFERENTIAL RING GEAR (a) Place the match-marks on the ring gear and differential case. (b) Remove the 16 bolts. (c) Using a plastic hammer, tap ring gear to remove it from the case. 2. REMOVE FRONT DIFFERENTIAL SIDE GEAR (a) Remove the differential LH case fr ...
