Toyota Sienna Service Manual: Front floor footrest

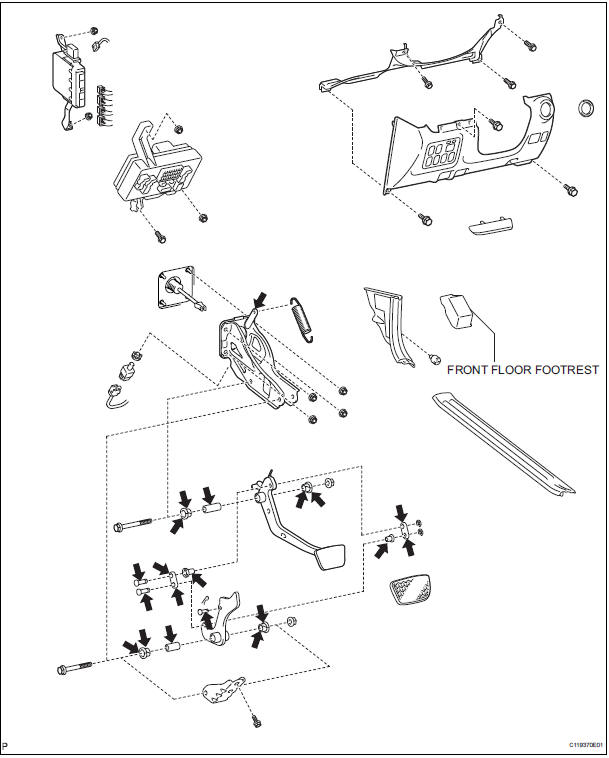

COMPONENTS
Removal
1. REMOVE FRONT FLOOR FOOTREST
- Using a screwdriver, disengage the 2 clips and
remove the footrest.
HINT: Tape the screwdriver tip before use.

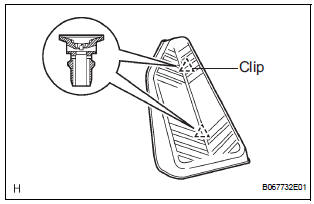

- Disengage the clips and then remove the 2 clips from the footrest.
INSTALLATION
1. INSTALL FRONT FLOOR FOOTREST
