Toyota Sienna Service Manual: Front power seat lumbar switch

Toyota Sienna Service Manual / Seat / Front power seat lumbar switch

Inspection

1. INSPECT FRONT POWER SEAT LUMBAR SWITCH

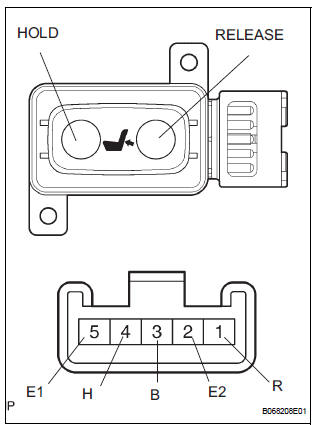

INSPECT FRONT POWER SEAT LUMBAR SWITCH

  1.  Measure the resistance according to the value(s) in the table below.

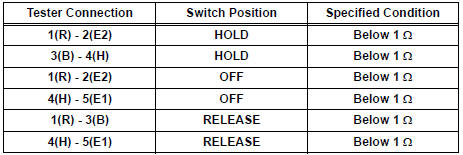

Standard resistance

Standard resistance

If the result is not as specified, replace the switch.
