Toyota Sienna Service Manual: Front seat assembly (for Flat Type)

Toyota Sienna Service Manual / Seat / Front seat assembly (for Flat Type)

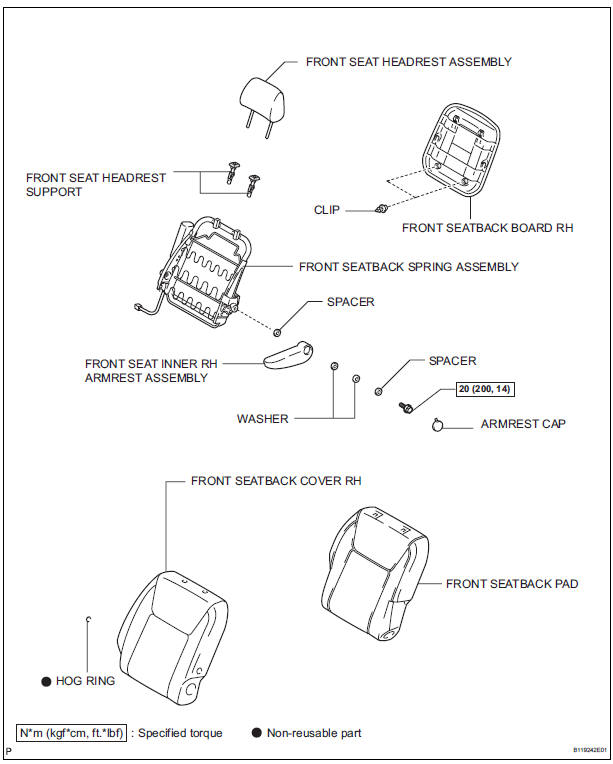

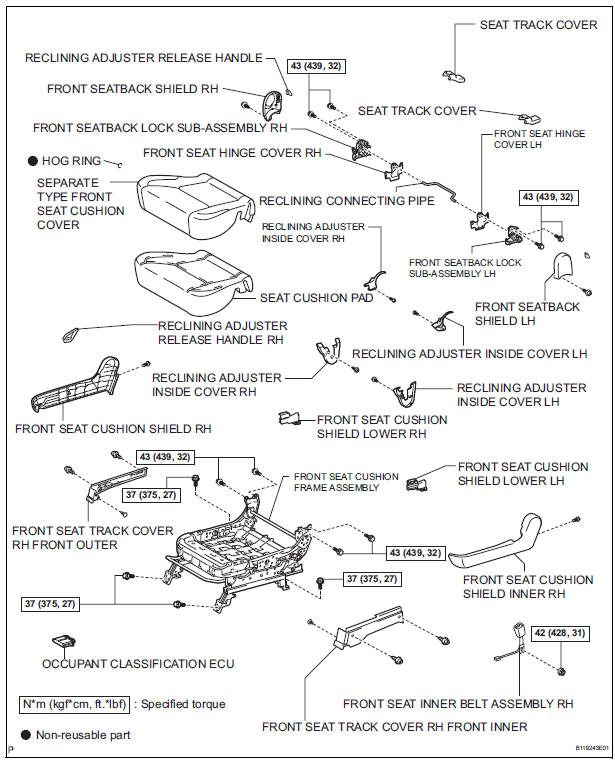

COMPONENTS

COMPONENTS

COMPONENTS

Inspection
1. INSPECT SEAT HEATER SWITCH LH  Measure the resistance of the seat heater switch when the switch is operated. Resistance If the result is not as specified, replace the switch. ...

Removal
CAUTION:  Wear safety gloves, because the sharp surfaces of the seatback frame and seat adjuster may injure your hand.  Work must be started more than 90 seconds after the igniti ...

Other materials:

Diagnostic trouble code chart
1. DTCS FOR OCCUPANT CLASSIFICATION SYSTEM If a trouble code is displayed during the DTC check, check the circuit listed for the code in the table below (proceed to the page listed for that circuit). HINT: When DTC B1150/23 is detected as a result of troubleshooting for the airbag system, pe ...

Short to GND in Front Pretensioner Squib RH Circuit
DTC B0132/61 Short to GND in Front Pretensioner Squib RH Circuit DESCRIPTION The front pretensioner squib RH circuit consists of the center airbag sensor assembly and the front seat outer belt assembly RH. This circuit instructs the SRS to deploy when deployment conditions are met. DTC B ...

How to proceed with troubleshooting
HINT: Troubleshoot in accordance with the procedures on the following pages 1 VEHICLE BROUGHT TO WORKSHOP 2 CUSTOMER PROBLEM ANALYSIS CHECK AND SYMPTOM CHECK 3 INSPECT COMMUNICATION FUNCTION OF LARGE-SCALE MULTIPLEX COMMUNICATION SYSTEM (BEAN) Use the intelligent tester to check for normal ...
