Toyota Sienna Service Manual: Front speed sensor

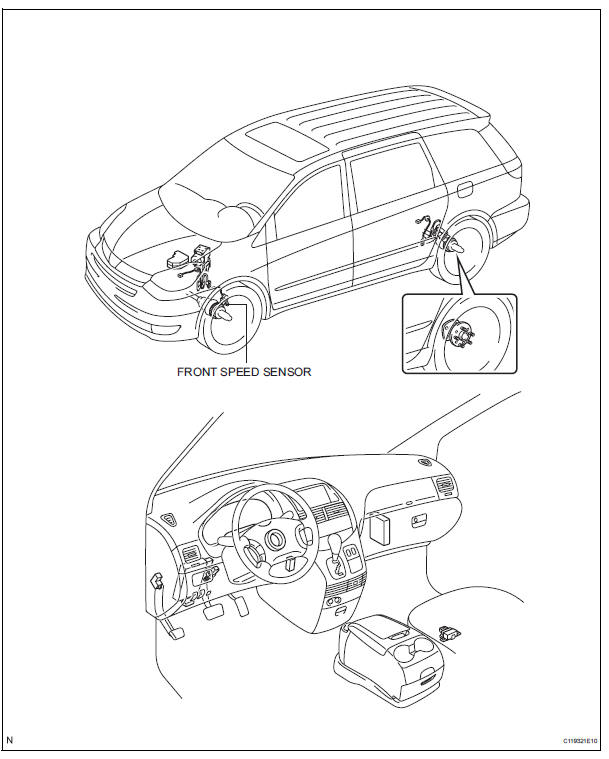

Components

Front speed sensor

Installation
1. INSTALL BRAKE ACTUATOR (a) Install the brake actuator assembly with the 2 nuts. Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf) 2. INSTALL BRAKE ACTUATOR WITH BRACKET (a) Install the actuator wit ...

Removal
HINT: Remove the RH side by same procedures with LH side. 1. REMOVE FRONT WHEEL 2. REMOVE FRONT FENDER LINER LH 3. REMOVE FRONT SPEED SENSOR LH (a) Disconnect the speed sensor connector. ( ...
