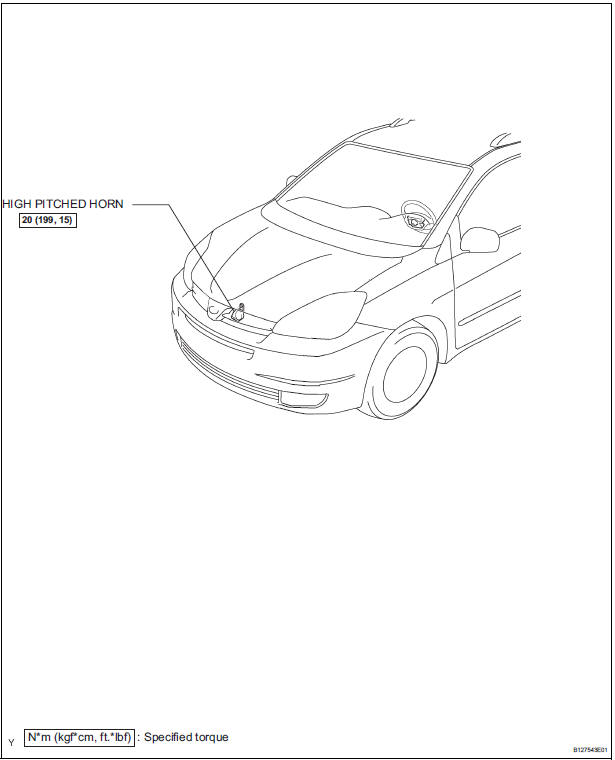

COMPONENTS

COMPONENTS

REMOVAL

1. REMOVE FRONT BUMPER COVER

2. REMOVE HIGH PITCHED HORN

  1.  Disconnect the connector.
  2.  Remove the bolt and horn.

INSPECTION

1. INSPECT HIGH PITCHED HORN

INSPECT HIGH PITCHED HORN

  1.  Apply battery voltage and check operation of the horn, as shown in the table.

Standard

Standard

INSTALLATION

1. INSTALL HIGH PITCHED HORN

INSTALL HIGH PITCHED HORN

  1.  Install the high pitched horn with the bolt.

    Torque: 20 N*m (199 kgf*cm, 15 ft.*lbf)

  2.  Connect the connector.

2. INSTALL FRONT BUMPER COVER
