Toyota Sienna Service Manual: Inspection

1. INSPECT SHOCK ABSORBER ASSEMBLY REAR LH

INSPECT SHOCK ABSORBER ASSEMBLY REAR LH

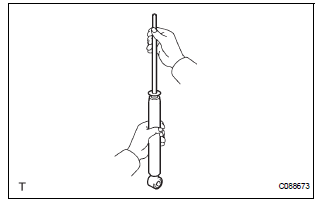

(a) Push down and pull up the shock absorber rod, and check that there is no unusual resistance or unusual operation sound.

If there is any malfunction, replace the shock absorber with a new one.

NOTICE: When disposing of the shock absorber, see DISPOSAL (See page SP-54).

Removal
1. REMOVE REAR WHEEL 2. REMOVE REAR SHOCK ABSORBER CAP LH (a) Remove the shock absorber head cover. (b) Remove the shock absorber cap LH. 3. REMOVE SHOCK ABSORBER ASSEMBLY REAR LH (a) S ...

Installation
1. INSTALL SHOCK ABSORBER ASSEMBLY REAR LH (a) Install the rear spring bumper No.1 LH to the shock absorber assembly LH. (b) Support the rear axle beam assembly with a jack. (c) Install ...
