1. INSPECT TIRE PRESSURE WARNING RESET SWITCH

INSPECT TIRE PRESSURE WARNING RESET SWITCH

(a) Remove the tire pressure warning reset switch.

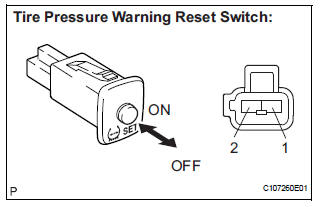

(b) Measure the resistance between terminals 1 and 2 of the tire pressure warning reset switch when the tire pressure warning switch is ON and OFF.

Standard resistance

If the result is not as specified, replace the tire pressure warning reset switch.

Removal
1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL 2. REMOVE FRONT DOOR SCUFF PLATE LH 3. REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH 4. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LH (See ...

Installation
1. INSTALL TIRE PRESSURE WARNING RESET SWITCH (a) Engage the 2 claws to install the tire pressure warning reset switch to the lower instrument panel finish panel sub-assembly LH. 2. INSTALL LO ...
