1. INSPECT REAR SPEED SENSOR

INSPECT REAR SPEED SENSOR

(a) Remove the seat cushion and seatback.

(b) Disconnect the speed sensor connector.

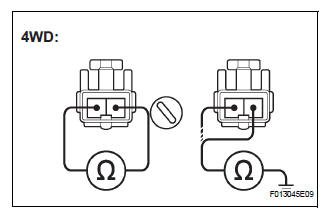

(c) Measure the resistance between terminals 1 and 2 of the speed sensor connector

OK: Resistance: 1.1 +- 0.2 kΩ at 25 +- 5 °C

(d) Measure the resistance between each of terminals 1 and 2 of skid control sensor connector and body ground.

OK: Resistance: 1 MΩ or higher

NOTICE: Check the speed sensor signal last (See page BC-10).

Removal
HINT: Remove the RH side by the same procedure as the LH side. 1. REMOVE REAR WHEEL 2. REMOVE QUARTER TRIM PANEL ASSEMBLY FRONT LH HINT: Remove the LH side by the same procedure as the RH side ...

Installation
HINT: Install the RH side by same procedure as the LH side. 1. INSTALL REAR SPEED SENSOR (a) Install the speed sensor rear LH with the bolt. Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf) NOTICE: K ...
