Toyota Sienna Service Manual: Inspection
1. INSPECT CRANKSHAFT POSITION SENSOR

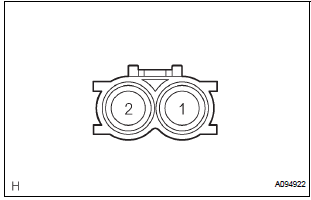

- Using an ohmmeter, measure the resistance between the terminals.
Standard resistance
NOTICE:
- "Cold" and "Hot" mean the temperature of the coils themselves.
- "Cold" is from -10C (14F) to 50C (122F) and "Hot" is from 50C (122F) to 100C (212F).
If the resistance is not as specified, replace the crankshaft position sensor.
Removal
1. REMOVE COMPRESSOR AND MAGNETIC CLUTCH
2. REMOVE CRANKSHAFT POSITION SENSOR
Disconnect the crankshaft position sensor
connector.
Remove the bolt, and then remove the cranksh ...
Installation
1. INSTALL CRANKSHAFT POSITION SENSOR
Apply a light coat of engine oil to the O-ring on the
crankshaft position sensor.
Install the crankshaft position sensor with the bolt.
...
