1. KNOCK CONTROL SENSOR

KNOCK CONTROL SENSOR

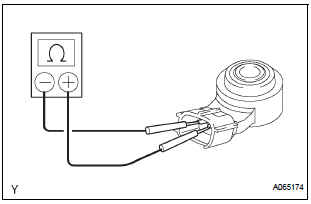

  1.  Using an ohmmeter, measure the resistance between the terminals.

    Resistance: 120 to 280 kΩ at 20C (68F)

If the resistance is not specified, replace the knock control sensor.

Removal
1. DISCHARGE FUEL SYSTEM PRESSURE 2. REMOVE V-BANK COVER SUB-ASSEMBLY 3. DRAIN ENGINE COOLANT 4. REMOVE WINDSHIELD WIPER MOTOR ASSEMBLY 5. REMOVE FRONT OUTER COWL TOP PANEL SUBASSEMBLY 6. REMOVE ...

Installation
1. INSTALL KNOCK CONTROL SENSOR  Install the 2 knock control sensors with the 2 bolts as shown in the illustration. Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)  Connect the 2 knock ...
