1. Inspect ignition switch assembly

 Inspect ignition switch assembly

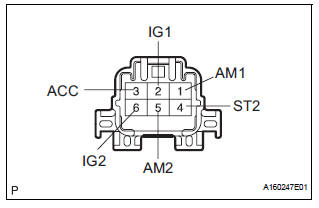

(a) Measure the resistance of the switch.

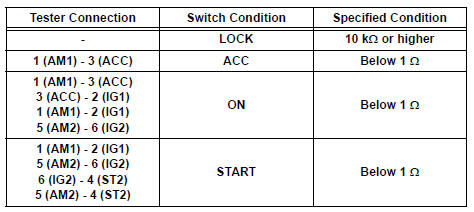

Standard resistance

If the result is not as specified, replace the switch assembly.

Removal
1. Disconnect cable from negative battery terminal 2. REMOVE STEERING COLUMN COVER LOWER (A) insert the key into the ignition key cylinder and release the steering lock. (B) turn the steeri ...

Installation
1. INSTALL IGNITION SWITCH ASSEMBLY (a) Install the ignition switch with the 2 screws. (b) Install the ignition switch connector. 2. INSTALL STEERING COLUMN COVER LOWER (a) Attach the 4 claw ...
