Toyota Sienna Service Manual: Installation

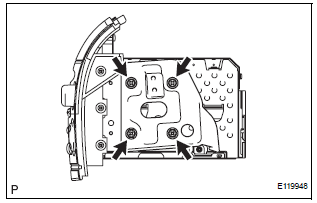

1. INSTALL RADIO NO. 2 BRACKET
- Install radio No. 2 bracket with the 4 screws.

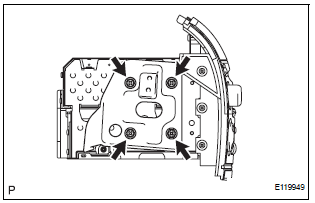

2. INSTALL RADIO NO. 1 BRACKET
- Install radio No. 1 bracket with the 4 screws.

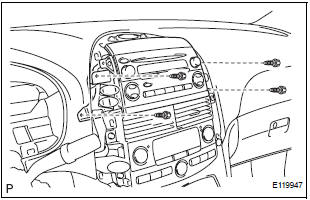

3. INSTALL RADIO RECEIVER
- Connect the connector.
- Install the radio receiver with the 4 screws.
4. INSTALL INSTRUMENT CLUSTER FINISH PANEL GARNISH
5. INSTALL INSTRUMENT CLUSTER CENTER NO. 2 FINISH PANEL
6. INSTALL INSTRUMENT CLUSTER CENTER NO. 1 FINISH PANEL
