Toyota Sienna Service Manual: Installation

1. REMOVE MASS AIR FLOW METER

REMOVE MASS AIR FLOW METER

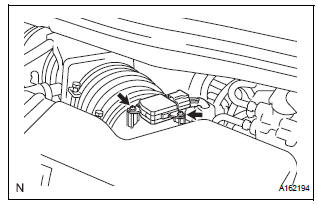

  1. Install the mass air flow meter with the 2 screws.
  2.  Connect the mass air flow meter connector.
Inspection
1. INSPECT MASS AIR FLOW METER  Visually check for any foreign matter on the platinum hot wire (heater) of the mass air flow meter. OK: There is no foreign matter. If the resu ...
