Toyota Sienna Service Manual: Installation

1. INSTALL CRANKSHAFT POSITION SENSOR

INSTALL CRANKSHAFT POSITION SENSOR

  1.  Apply a light coat of engine oil to the O-ring on the crankshaft position sensor.

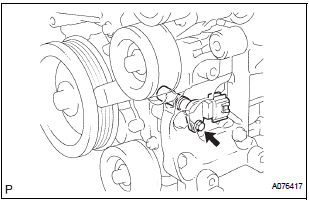

  2.  Install the crankshaft position sensor with the bolt.

    Torque: 9.0 N*m (92 kgf*cm, 80 in.*lbf)

  3.  Connect the crankshaft position sensor connector.
