1. INSTALL ROOF DRIP SIDE FINISH MOULDING

  1. When exchanging the clips
  1. Remove the tape that remains on the mounting surface of the vehicle body and then clean the surface with white gasoline.
  2. Using a heat light, heat up the clip installation surfaces of the vehicle body and moulding.

Heating temperature:

Heating temperature

NOTICE: Do not heat the body and moulding excessively.

Heating temperature

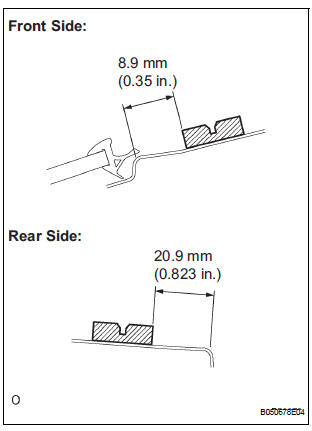

  1. Set the supply clips in the positions as shown in the illustration and press-fit the clips by hand to install them.

NOTICE: Install the moulding when 30 minutes or more have passed after press-fitting the clips.

HINT:

  1. Install the roof drip side finish moulding
Removal
1. REMOVE ROOF DRIP SIDE FINISH MOULDING Put protective tape around the roof drip side finish moulding. Using a remover for the roof moulding, disengage of the clips both in the front an ...

Outside moulding
COMPONENTS ...
