Toyota Sienna Service Manual: Installation

1. INSTALL BACK DOOR OUTSIDE GARNISH

INSTALL BACK DOOR OUTSIDE GARNISH

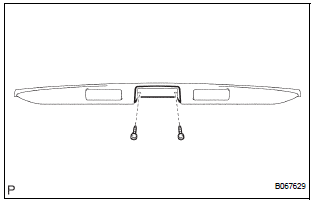

  1. Install the back door outside opener switch with the 2 screws.

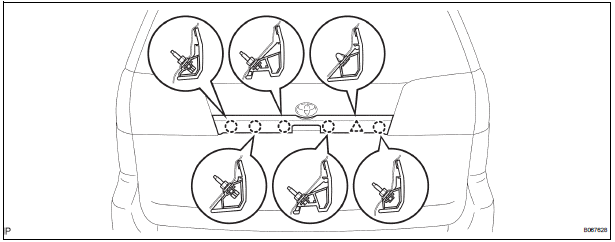

  2. Install the back door outside garnish with the 5 nuts and a clip.

INSTALL BACK DOOR OUTSIDE GARNISH

  1. Connect the licence light connector.

2. INSTALL LH BACK-UP LIGHT ASSEMBLY (See page LI-90)

3. INSTALL RH BACK-UP LIGHT ASSEMBLY (See page LI-90)

4. INSTALL BACK DOOR TRIM BOARD ASSEMBLY

5. INSTALL BACK DOOR PULL STRAP (See page ED- 223)

6. INSTALL BACK DOOR LH SIDE GARNISH

7. INSTALL BACK DOOR RH SIDE GARNISH

8. INSTALL POWER BACK DOOR ROD

9. INSTALL BACK DOOR CENTER GARNISH
