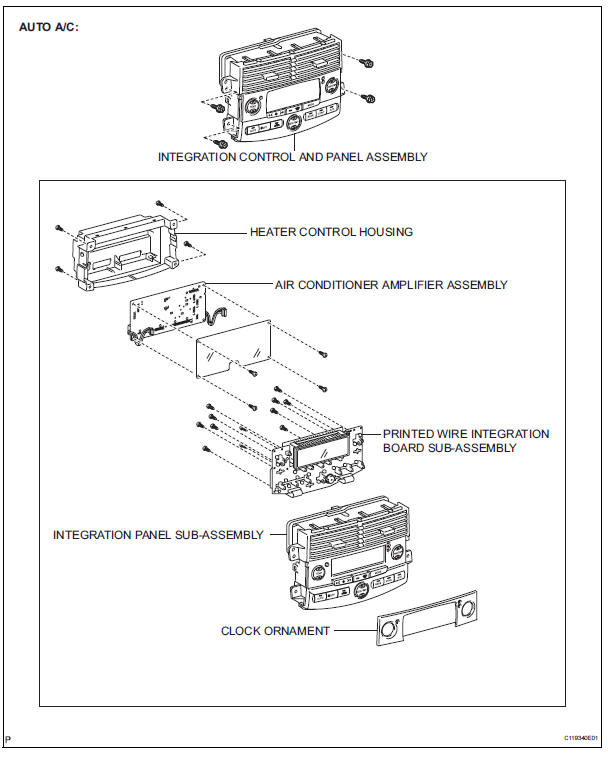

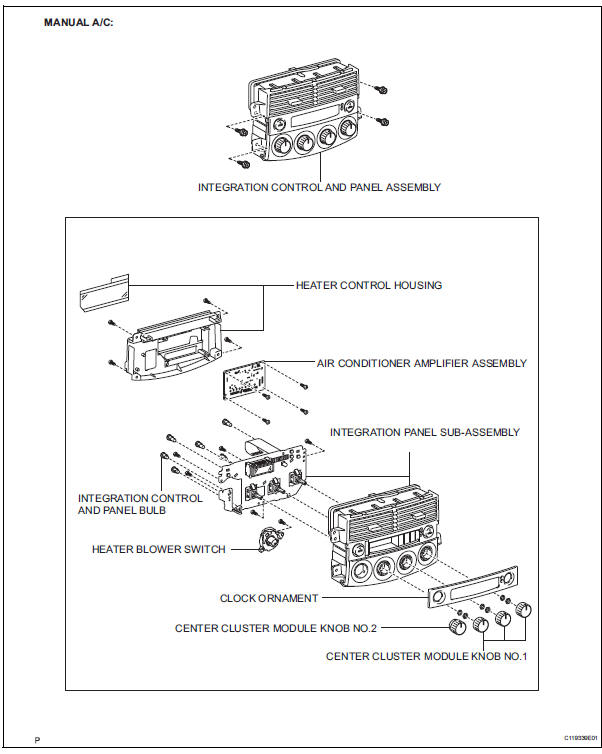

COMPONENTS

Integration control and panel

Integration control and panel

Disassembly
1. REMOVE CONTROL KNOB SUB-ASSEMBLY (for Manual Air Conditioning System) (a) Remove the control knob sub-assembly. 2. REMOVE AIR CONDITIONING CONTROL BULB (a) Remove the air conditioning co ...

Removal
1. REMOVE INSTRUMENT CLUSTER FINISH PANEL CENTER NO.1 (See page IP-8) 2. REMOVE INSTRUMENT CLUSTER FINISH PANEL CENTER NO.2 3. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY HINT: (See page AX-146 for U15 ...
