Toyota Sienna 2010-2020 Owners Manual: Interior lights list

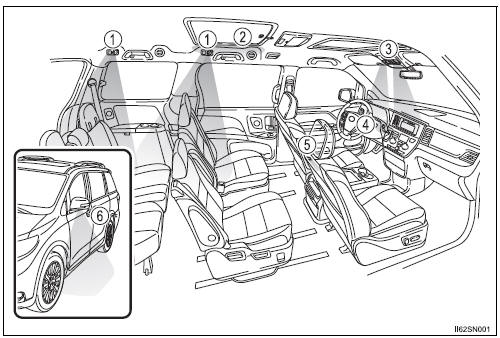

Toyota Sienna. Interior lights list


  1. Rear personal/interior lights
  2. Rear ceiling lights (if equipped)
  3. Front personal/interior lights
  4. Engine switch light
  5. Front door courtesy lights (if equipped)
  6. Outer foot lights (if equipped)
Using the interior lights
...

Personal/interior light main switch
Turns the lights on Turns the door position on Turns the lights off ...
