Toyota Sienna Service Manual: On-vehicle inspection

Toyota Sienna Service Manual / Audio / visual / On-vehicle inspection

1. INSPECT VOLTAGE INVERTER ASSEMBLY

INSPECT VOLTAGE INVERTER ASSEMBLY

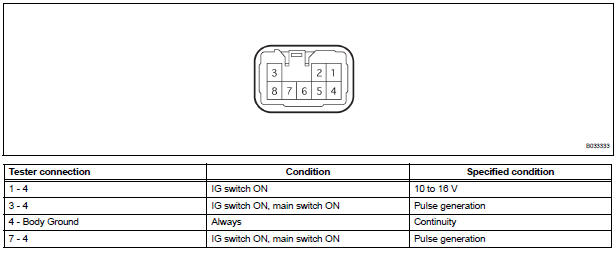

  1.  Inspect the voltage inverter assembly.
Voltage inverter
COMPONENTS ...

Removal
1. REMOVE REAR DOOR SCUFF PLATE LH 2. REMOVE REAR DOOR WEATHERSTRIP LH 3. REMOVE BACK DOOR WEATHERSTRIP 4. REMOVE BACK DOOR SCUFF PLATE 5. REMOVE QUARTER TRIM FRONT PANEL ASSEMBLY LH 6. REMOVE VO ...

Other materials:

Microphone Circuit between Microphone and Radio and Navigation Assembly
DESCRIPTION This circuit sends a microphone signal from the microphone to the radio and navigation assembly. It also supplies power from the radio and navigation assembly to the microphone. WIRING DIAGRAM INSPECTION PROCEDURE 1 INSPECT RADIO AND NAVIGATION ASSEMBLY Measure the v ...

Diagnostic trouble code chart
1. DTCS FOR AIRBAG SYSTEM If a malfunction code is displayed during the DTC check, check the circuit listed for the code in the table below (Proceed to the page listed for that circuit). HINT:  When the SRS warning light remains on and the DTC output is the normal system code, a volta ...

On-vehicle inspection
1. INSPECT FRONT AXLE HUB BEARING BACKLASH (a) Using a dial gauge, check for backlash near the center of the axle hub. Maximum: 0.05 mm (0.0020 in.) If backlash exceeds the maximum, replace the bearing. NOTICE: Ensure that the dial gauge is set at right angles to the measurement surface ...
