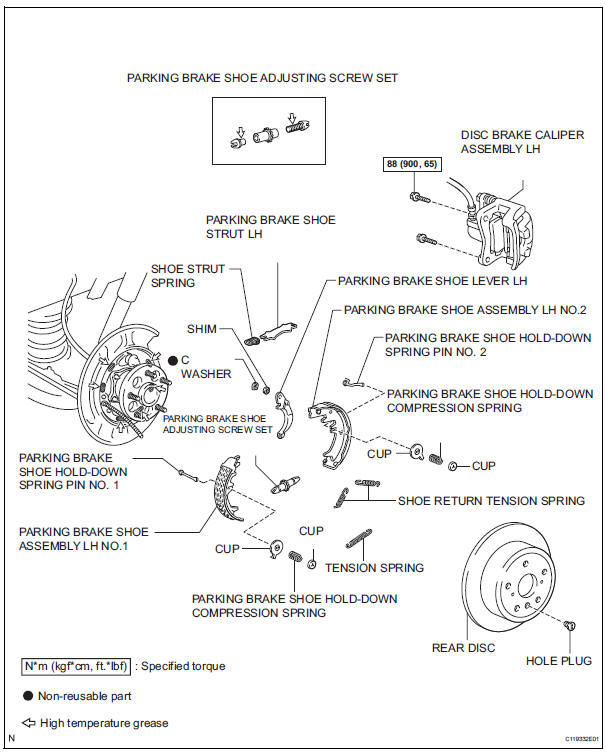

COMPONENTS

Parking brake assembly

Installation
1. INSTALL PARKING BRAKE CABLE ASSEMBLY NO.3 (a) Install the parking brake cable LH guide to the parking brake cable assembly No. 3. (b) Connect the parking brake cable No. 3 to the parking brak ...

Disassembly
HINT: Overhaul the RH side by the same procedures as these of the LH side. 1. REMOVE REAR WHEEL 2. SEPARATE REAR DISC BRAKE CALIPER ASSEMBLY LH HINT: Do not disconnect the flexible hose from th ...
