Toyota Sienna Service Manual: Parking brake cable

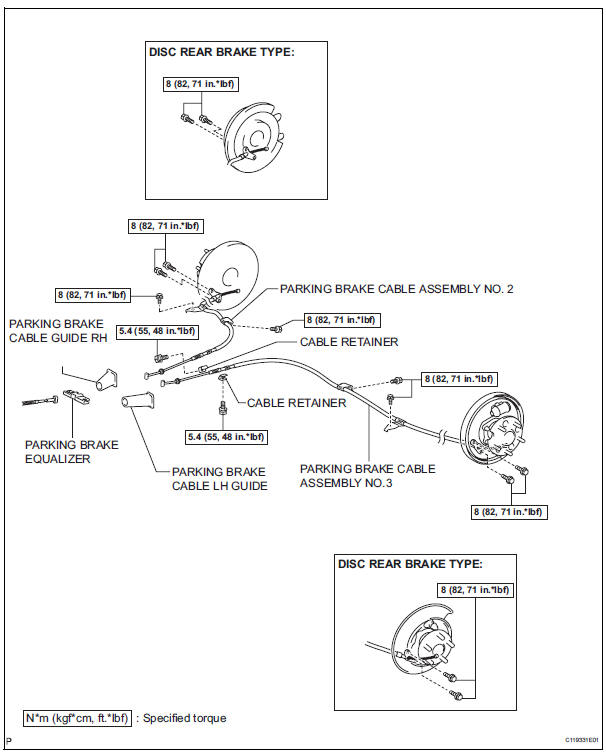

Components

Parking brake cable

Installation
1. INSTALL PARKING BRAKE CONTROL PEDAL ASSEMBLY (a) Install the parking brake control pedal assembly with a bolt and the 2 nuts. Torque: 39 N*m (398 kgf*cm, 29 ft.*lbf) (b) Connect the parki ...

Removal
HINT: For the parking brake cable assembly No. 2, perform the same procedure to the parking brake cable assembly No. 3. 1. REMOVE REAR WHEEL 2. REMOVE REAR BRAKE DRUM SUB-ASSEMBLY (for Drum Type) ...
