Toyota Sienna Service Manual: Power outlet socket

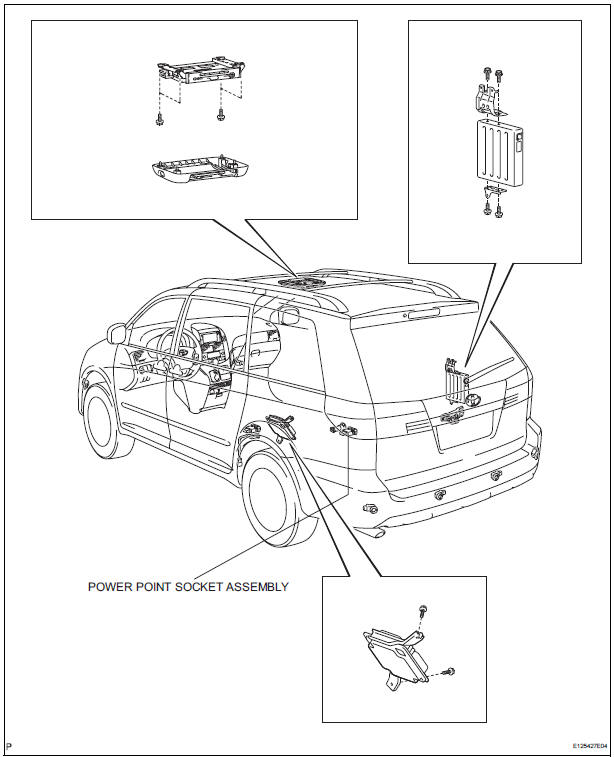

COMPONENTS

COMPONENTS

COMPONENTS

COMPONENTS

Installation
1. INSTALL CIGARETTE LIGHTER ASSEMBLY  Engage the 2 claws to install the cigarette lighter assembly.  Install the cigarette lighter knob. 2. INSTALL CIGARETTE LIGHTER COVER ...

Removal

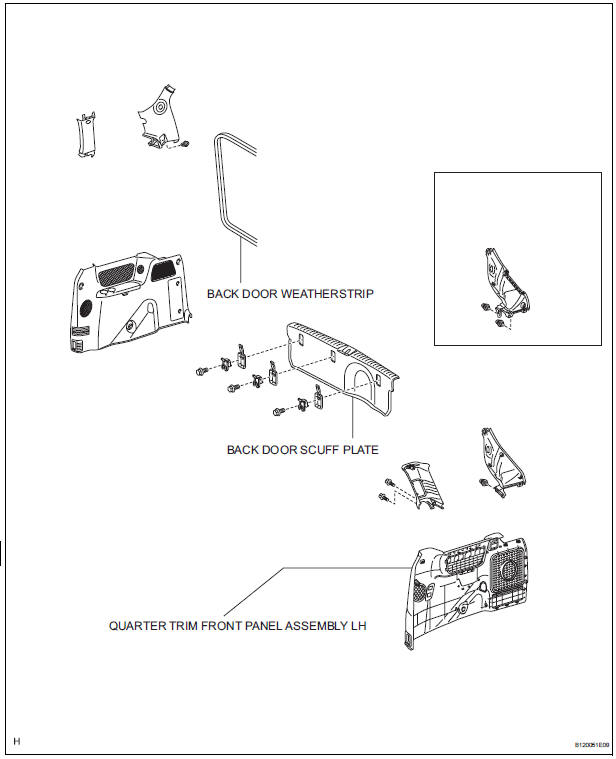

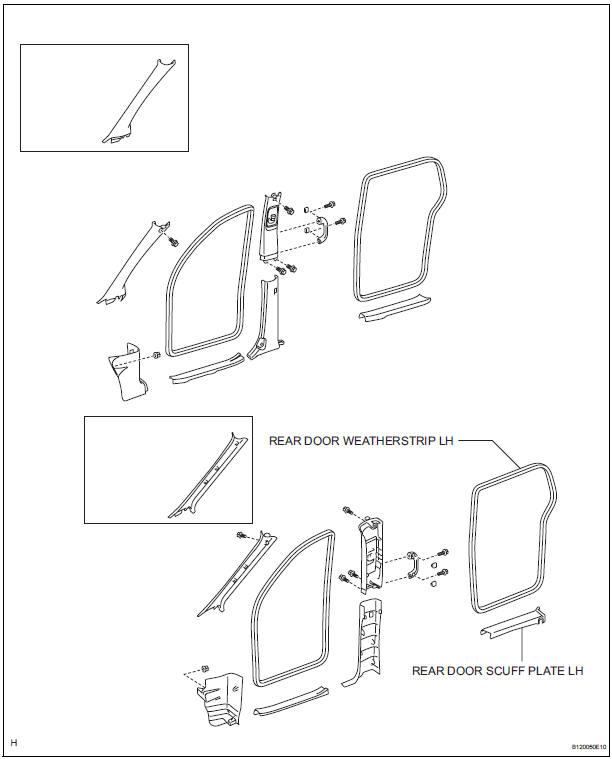

1. REMOVE REAR DOOR SCUFF PLATE LH 2. REMOVE REAR DOOR WEATHERSTRIP LH 3. REMOVE BACK DOOR WEATHERSTRIP 4. REMOVE BACK DOOR SCUFF PLATE 5. REMOVE QUARTER TRIM FRONT PANEL ASSEMBLY LH 6. REMOVE PO ...
