Toyota Sienna Service Manual: Power point socket (for Front Side)

Toyota Sienna Service Manual / Other system / Power point socket (for Front Side)

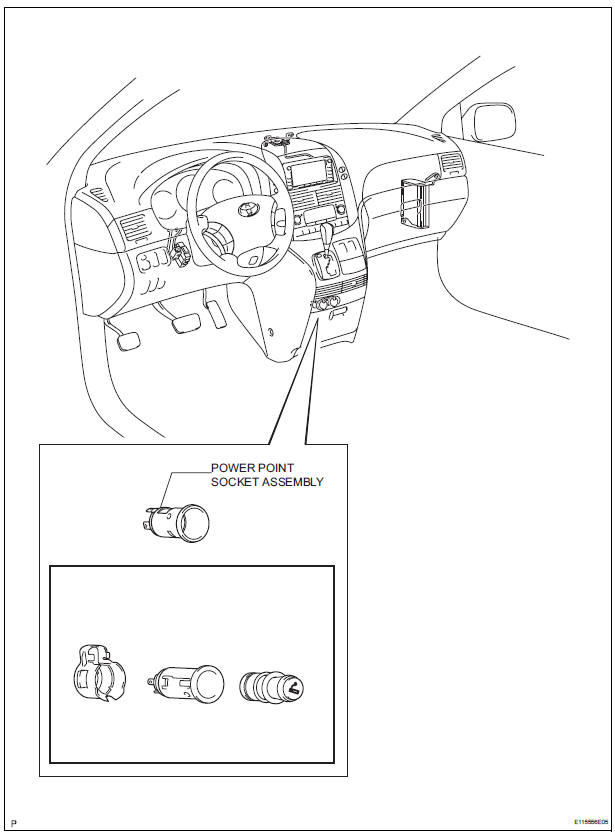

COMPONENTS

COMPONENTS

COMPONENTS

Installation
1. INSTALL POWER POINT SOCKET ASSEMBLY  Engage the 2 claws to install the power point socket assembly. 2. INSTALL QUARTER TRIM FRONT PANEL ASSEMBLY LH 3. INSTALL BACK DOOR SCUFF PL ...

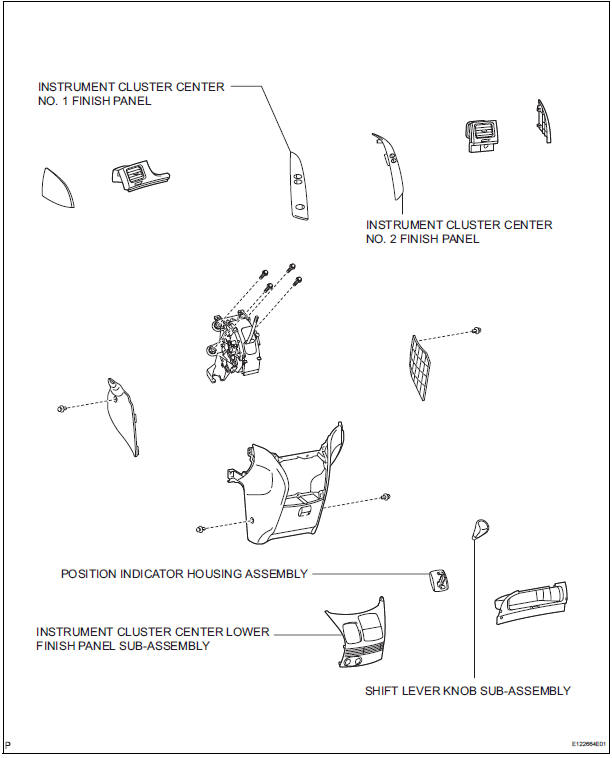

Removal
1. REMOVE INSTRUMENT CLUSTER CENTER NO. 1 FINISH PANEL 2. REMOVE INSTRUMENT CLUSTER CENTER NO. 2 FINISH PANEL 3. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY 4. REMOVE POSITION INDICATOR HOUSING ASSEMBLY ...
