Toyota Sienna Service Manual: Power slide door

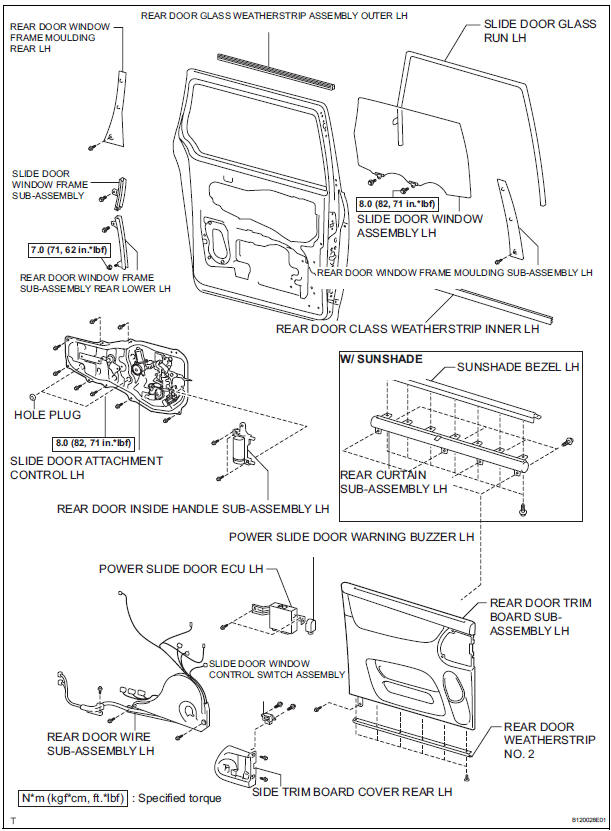

COMPONENTS

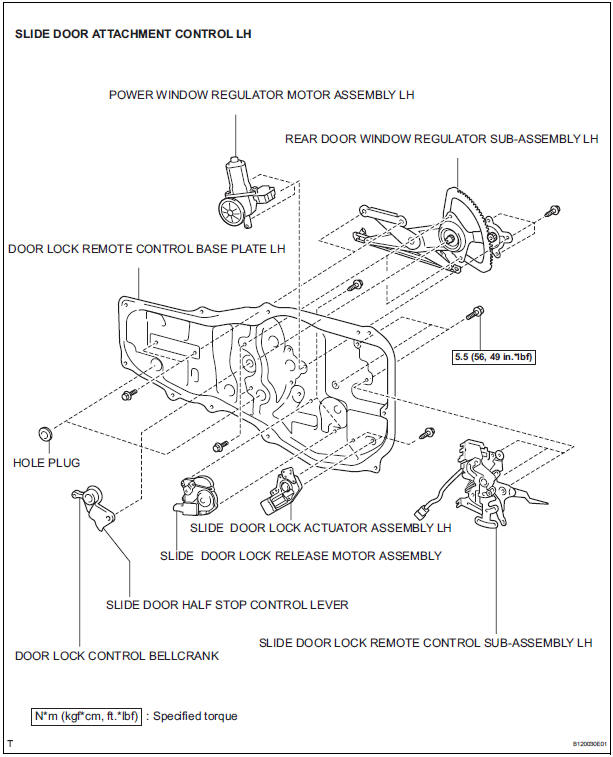

COMPONENTS

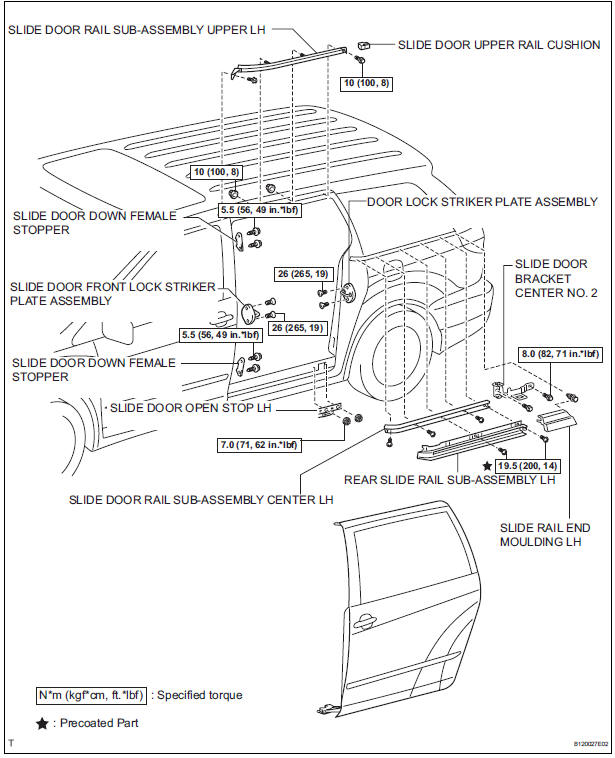

COMPONENTS

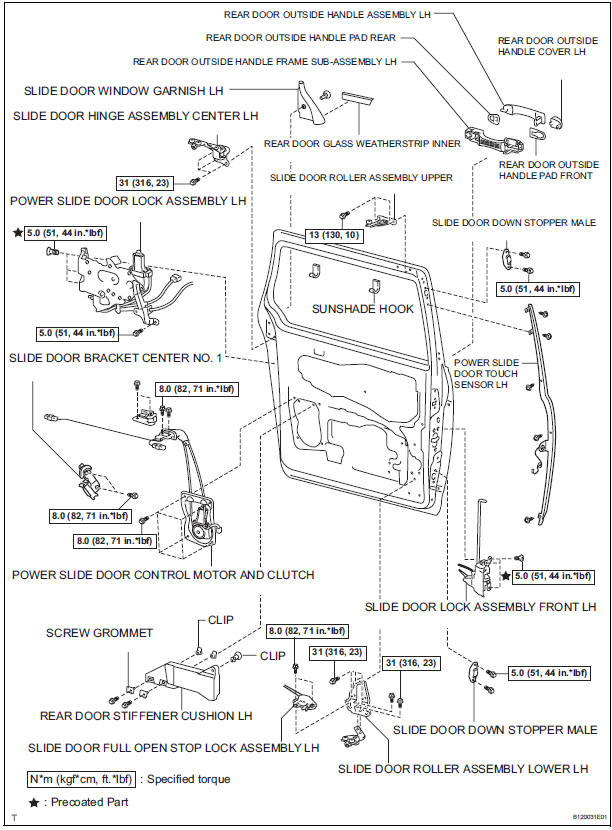

COMPONENTS

COMPONENTS

Power slide door control motor and clutch
INSPECTION 1. INSPECT SLIDE DOOR CONTROL MOTOR AND CLUTCH ASSEMBLY LH Remove the motor and clutch. Connect the battery positive (+) lead to terminal 3 and the battery negative (-) lead to ...

Removal
HINT: On the RH side, use the same procedures as on the LH side. 1. REMOVE SLIDE DOOR Remove the rear door scuff plate (See page IR-7). Remove the back door scuff plate (See page ED- 214 ...
