Toyota Sienna Service Manual: Power slide door touch sensor

Toyota Sienna Service Manual / Engine hood / door / Power slide door touch sensor

INSPECTION

1. INSPECT POWER SLIDE DOOR TOUCH SENSOR LH

INSPECT POWER SLIDE DOOR TOUCH SENSOR LH

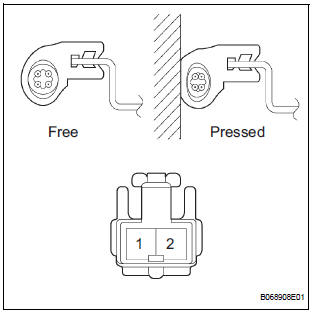

  1. Check the resistance of the sensor.

Resistance

Resistance

If the result is not as specified, replace the sensor.

2. INSPECT POWER SLIDE DOOR TOUCH SENSOR RH

INSPECT POWER SLIDE DOOR TOUCH SENSOR RH

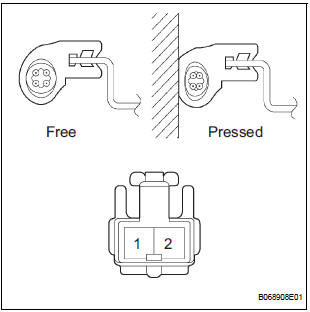

  1. Check the resistance of the sensor.

Resistance

Resistance

If the result is not as specified, replace the sensor.

Power slide door control switch
INSPECTION 1. INSPECT POWER SLIDE DOOR CONTROL SWITCH Inspect the resistance of the switch for LH / RH. Resistance If the result is not as specified, replace the switch. Apply batte ...

Slide door half open stopper control assembly
INSPECTION 1. INSPECT SLIDE DOOR HALF OPEN STOPPER CONTROL ASSEMBLY Inspect the resistance of the switch. Resistance If the result is not as specified, replace the control sub-assembly ...
