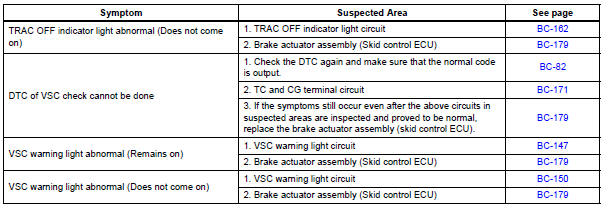

Toyota Sienna Service Manual: Problem symptoms table

Vehicle stability control system:

Vehicle stability control system

Vehicle stability control system

TERMINALS OF ECU

1. Terminal of ECU

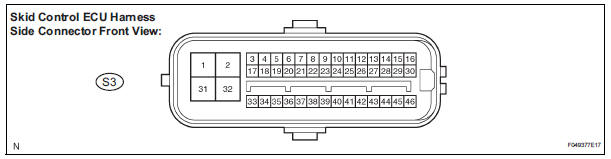

Terminal of ECU

(*1): Models with dynamic laser cruise control

(*2): 2WD model

2. Terminal Inspection

(a) Disconnect the connector and measure the voltage or resistance on the wire harness side.

Terminal Inspection

HINT: Voltage cannot be measured with the connector connected to the skid control ECU because the connector is watertight.

Standard

Standard

(*1): 2WD model
