Toyota Sienna Service Manual: Problem symptoms table

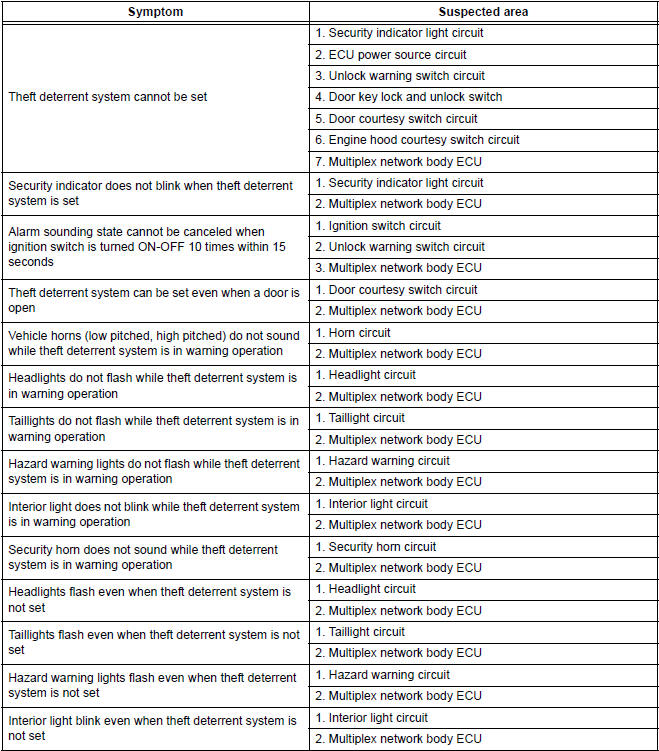

Proceed to the reference page shown in the table below for each malfunction symptom and troubleshoot each circuit.

HINT: Troubleshooting of the theft deterrent system is based on the premise that the door lock control system and the wireless door lock control system are operating normally. Accordingly, before troubleshooting the theft deterrent system, first make certain that the door lock control system and the wireless door lock control system are operating normally.

Theft deterrent system

Theft deterrent system

Customize parameters
HINT: The following items can be customized. NOTICE:  After confirming whether the items requested by the customer are applicable or not for customization, perform customizing operation ...

Terminals of ECU
1. CHECK INSTRUMENT PANEL J/B ASSEMBLY (MULTIPLEX NETWORK BODY ECU)  Disconnect the B6, B7 and B9 ECU connectors. Disconnect the 1A, 1C, 1L and 1K J/B connectors.  Measure t ...
