Toyota Sienna Service Manual: Problem symptoms table

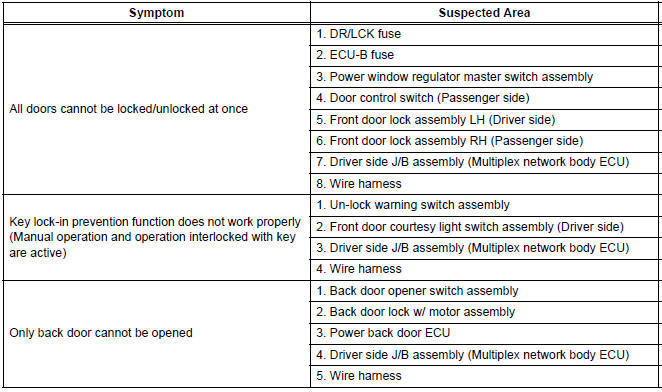

HINT: Inspect the fuse and relay before investigating the suspected areas shown in the table below.

POWER DOOR LOCK CONTROL SYSTEM

POWER DOOR LOCK CONTROL SYSTEM
