Toyota Sienna Service Manual: Problem symptoms table

HINT: Inspect the "Fuse" and "Relay" before confirming the suspected area as shown in the table below.

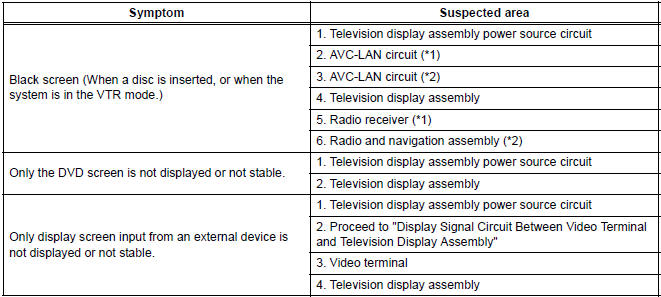

DISPLAY FUNCTION:

DISPLAY FUNCTION

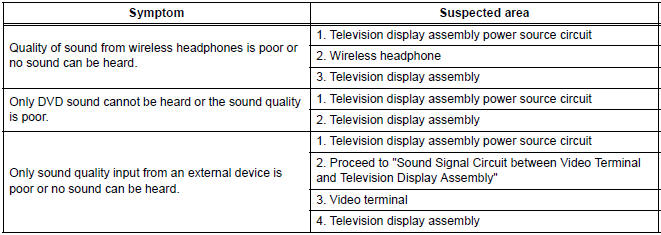

SOUND FUNCTION:

SOUND FUNCTION

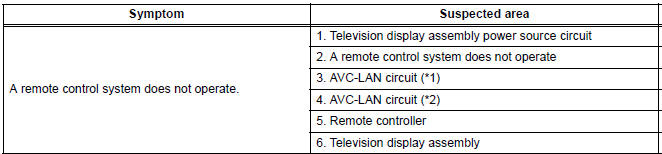

REMOTE CONTROL FUNCTION:

REMOTE CONTROL FUNCTION

*1: without Navigation System
*2: with Navigation System

How to proceed with troubleshooting
1 VEHICLE BROUGHT TO WORKSHOP 2 CUSTOMER PROBLEM ANALYSIS Interview the customer and confirm the trouble. Confirm the problem by duplicating the conditions described by the customer 3 ...

Terminals of ECU
1. TELEVISION DISPLAY ASSEMBLY *1: with Navigation System ...
