Toyota Sienna Service Manual: Problem symptoms table

HINT: When a malfunction is not confirmed by a DTC (Diagnostic Trouble Code) check and the cause of problem cannot be identified through a basic inspection, troubleshoot according to the priority order indicated in the table below.

SFI SYSTEM

SFI SYSTEM

Problem symptoms table

Readiness monitor drive pattern
1. PURPOSE OF READINESS TESTS  The On-Board Diagnostic (OBD II) system is designed to monitor the performance of emissionrelated components, and indicate any detected abnormalities with ...

Terminals of ECM
1. SFI SYSTEM HINT: The standard normal voltage between each pair of the ECM terminals is shown in the table below. The appropriate conditions for checking each pair of the terminals are also i ...

Other materials:

Problem symptoms table

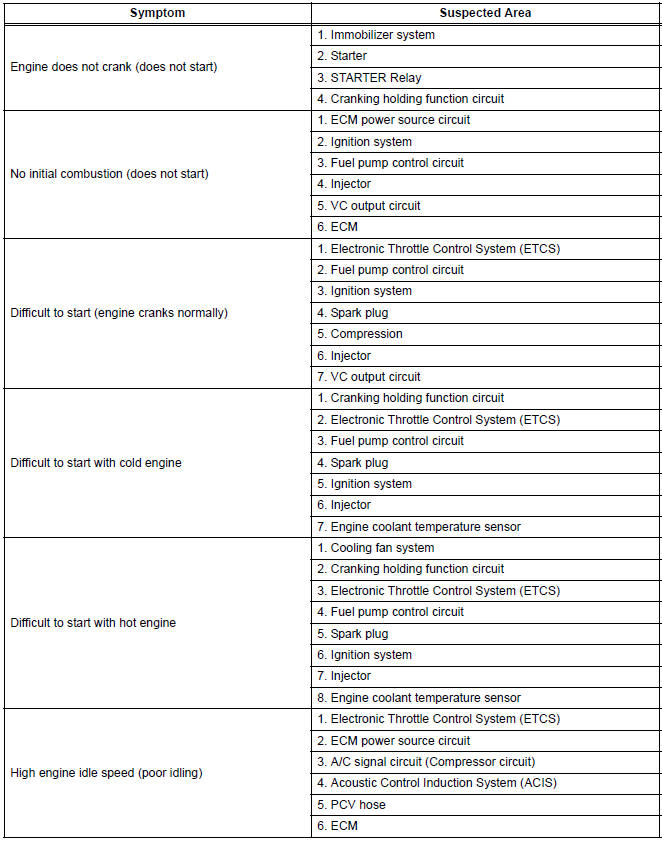

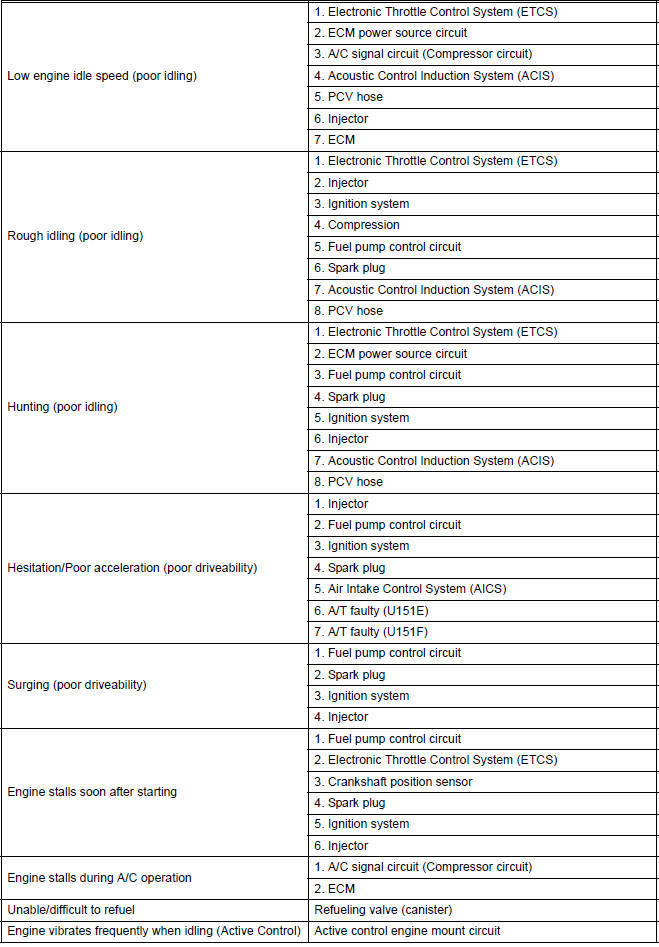

HINT: Use the table below to help determine the cause of the problem symptom. The potential causes of the symptoms are listed in order of probability in the "Suspected Area" column of the table. Check each symptom by checking the suspected areas in the order they are listed. Replace p ...
